Physiographic features

This site occurs on nearly level to moderately steep depositional alluvial fans at the base of steep badland escarpments in MLRA 58C. Gullied areas also occur.

Table 2. Representative physiographic features

Climatic features

MLRA 58C is considered to have a continental climate with cold winters and hot summers, low humidity, light rainfall, and much sunshine. Extremes in temperature are common and characteristic of the MLRA. The continental climate is the result of the location of this MLRA in the geographic center of North America. There are few natural barriers on the northern Great Plains, so air masses move unobstructed across the plains and account for rapid changes in temperature.

Annual precipitation ranges from 14 to 17 inches per year. The normal average annual temperature is about 41° F. January is the coldest month with an average temperature of about 17° F. July is the warmest month with an average temperature of about 70° F. The range of normal average monthly temperatures between the coldest and warmest months is 53° F. This large temperature range attests to the continental nature of the MLRA 58C climate. Wind speeds average about 11 miles per hour, ranging from about 13 miles per hour during the spring to about 10 miles per hour during the summer. Daytime wind speeds are generally stronger than nighttime wind speeds, and occasional strong storms may bring brief periods of high winds with gusts to more than 50 miles per hour.

Growth of native cool-season plants begins in late March and continues to early to mid-July. Native warm-season plants begin growth in mid-May and continue to the end of August. Greening up of cool-season plants can occur in September and October when adequate soil moisture is present.

Table 3. Representative climatic features

Climate stations used

• (1) WATFORD CITY 14S [USC00329246], Grassy Butte, ND

• (2) TROTTERS 3 SSE [USC00328812], Beach, ND

• (3) MEDORA 7 E [USW00094080], Fairfield, ND

• (4) AMIDON [USC00320209], Amidon, ND

• (5) CARLYLE 13 NW [USC00241518], Wibaux, MT

Influencing water features

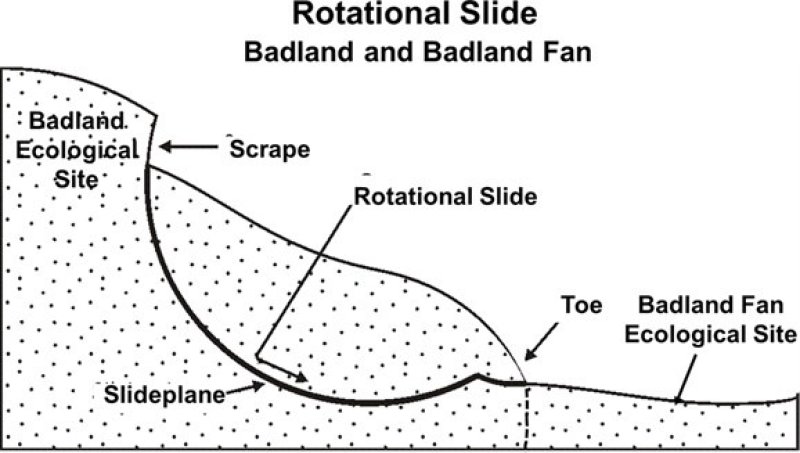

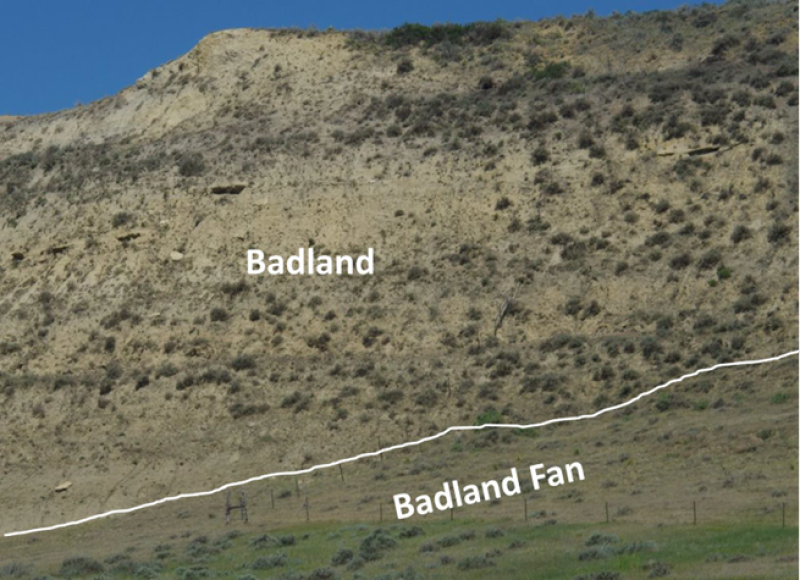

Overland flow carrying sediments eroded from the adjacent badland escarpment deposits those sediments on the alluvial fan at the base of the escarpment. A seasonal water table is deeper than 5 feet throughout the growing season. Surface infiltration and permeability through the profile are moderately slow to moderate. Water loss is through evapotranspiration and percolation below the root zone.

Soil features

Soils associated with the Badland Fan ecological sites are in the Entisol order and are classified further as Aridic Ustorthents. These soils were developed under prairie vegetation. They formed in calcareous, medium-textured slope alluvium eroding from the adjacent sparsely vegetated, very steep, soft sedimentary bedrock escarpment (i.e., Badland). The soils on this site are very deep; typically, the depth to soft sedimentary bedrock is more than 80 inches but may be as shallow as 60 inches in some soils. The soils are well drained.

The sediments deposited by overland water flow at the base of the very steep badland escarpments are recent alluvium originally formed from soft sedimentary bedrock laid down during the Tertiary and late Cretaceous periods. The soft sedimentary bedrock is primarily calcareous siltstone, mudstone, or shale. Textures of the A horizon (i.e., surface layer) are typically loam or silt loam but can include fine sandy loam, clay loam, or silty clay loam. The A horizon is light brownish gray in color and typically ranges from about 0.5 to 3 inches thick. Typically, a thin A horizon is underlain by numerous stratified layers of alluvial sediments. In some cases, a transitional AC horizon (i.e., subsurface layer) has developed directly below the A horizon.

Substratum textures range from fine sandy loam to silty clay loam but are commonly loam or clay loam and will form a ribbon less than 2 inches long. Typically, these C horizon(s) are made up of numerous thin layers of various soil textures and colors. Buried A horizons can occur. Some strata may contain small fragments and chips of scoria if the adjacent escarpment is capped with porcelanite.

Soil reaction typically is slightly alkaline or moderately alkaline (pH 7.4 to 8.4) in the surface layer and ranges to strongly alkaline (pH 8.5 to 9.0) in the substratum. Typically, soil salinity is none to very slight (E. C. <4 dS/m); however slight salinity (E.C. 4 to 8 dS/m) is allowable. Sodicity is typically none to moderate (SAR 0 to 10); however, is some soils it ranges to high (SAR 10 to 20). Calcium carbonate content typically ranges from low to high (5 to 30 percent).

Soil on the Badland Fan ecological site is susceptible to water erosion. The hazard of water erosion increases where vegetative cover is sparse or non-existent.

The major soil series which characterizes the Badland Fan ecological site is Patent. Also currently included in this site is Sham; however, some Sham components have higher salinity levels than the central concept of this site.

Access Web Soil Survey (https://websoilsurvey.sc.egov.usda.gov/App/WebSoilSurvey.aspx) for specific local soils information.

Table 4. Representative soil features

Animal community

Animal Community – Wildlife Interpretations

Landscape

The MLRA 58C landscape is characterized by moderately dissected rolling plains with areas of local Badlands, buttes, and isolated hills. MLRA 58C is considered to have a continental climate with cold winters and hot summers, low humidity, light rainfall, and much sunshine. Extremes in temperature are common and characteristic of the MLRA. This area supports natural mixed-grass prairie vegetation with prairie rose, leadplant, and patches of western snowberry interspersed throughout the area. Green ash, chokecherry, and buffaloberry occur in draws and narrow valleys, creating woody riparian corridors. Complex/intermingled ecological sites create diverse grass- and shrubland habitats interspersed with varying densities linear, slope, depressional, and in-stream wetlands associated with headwater streams and tributaries to the Missouri River. These habitats provide critical life-cycle components for many wildlife species.

Historic Communities/Conditions within MLRA 58C:

The northern mixed-grass prairie was a disturbance-driven ecosystem with fire, herbivory, and climate functioning as the primary ecological drivers either singly or often in combination. Many species of grassland birds, small mammals, insects, reptiles, amphibians, and large herds of roaming bison, elk, and pronghorn were historically among the inhabitants adapted to this semi-arid region. Roaming herbivores, as well as several small mammal and insect species, were the primary consumers linking the grassland resources to large predators (such as the wolf, mountain lion, and grizzly bear) and smaller carnivores (such as the coyote, bobcat, red fox, and raptors). The black-tailed prairie dog was once abundant and provided ecological services by manipulating the plant and soil community providing habitat for the black-footed ferret, burrowing owl, ferruginous hawk, mountain plover, swift fox, small mammals, and amphibians and reptiles. Extirpated species include free-ranging American bison, Canada lynx, common raven, grizzly bear, gray wolf, black-footed ferret, mountain plover, and peregrine falcon (breeding). Extinct from the region is the Rocky Mountain locust.

Present Communities/Conditions within MLRA 58C:

Following European influence, domestic livestock grazing, elimination of fire, energy development, and other anthropogenic factors influenced plant community composition and abundance. Transportation corridors, energy development, and Rocky Mountain juniper and ponderosa pine encroachment are the main factors contributing to habitat fragmentation, reducing habitat quality for area-sensitive species. These influences fragmented the landscape, reduced or eliminated ecological drivers (fire), and introduced exotic plant species including, smooth brome, crested wheatgrass, Kentucky bluegrass, and leafy spurge further impacting plant and animal communities. The loss of the bison, black-tailed prairie dogs, and fire as primary ecological drivers greatly influenced the character of the remaining native plant communities and the associated wildlife moving towards a less diverse and more homogeneous landscape, lacking diverse species composition and stature.

Extensive fragmentation by annual cropping has not occurred within the MLRA. Limited fragmentation from annual cropping or tame hay production has occurred within the Little Missouri River flood plain and the higher, flat plateaus. Fragmentation east and west of MLRA 58C has funneled many species into this area in search of expansive grasslands.

Some wildlife species in this area are: mule deer, white-tailed deer, elk, bighorn sheep, pronghorn, mountain lion, coyote, red fox, bobcat, prairie rattlesnake, American badger, raccoon, North American porcupine, beaver, striped skunk, American mink, white-tailed jackrabbit, black-tailed prairie dog, Eastern and Merriam’s wild turkey, golden eagle, ferruginous hawks, sharp-tailed grouse, greater sage-grouse, black-billed magpie, and numerous species of grassland-nesting birds and pollinating insects.

Presence of wildlife species is often determined by ecological site characteristics including grass and forb species, hydrology, aspect, and other associated ecological sites. Home ranges for most species are larger than one ecological site or are dependent on more than one ecological site for annual life requisites. Ecological sites offer different habitat elements as the annual life requisites change. Habitat improvement and creation must be conducted within the mobility limits of a known population for the species.

Insects play an important role providing ecological services for plant community development. Insects that are scavengers or aid in decomposition provide the food chain baseline sustaining the carnivorous insects feeding upon them. Many insects provide the ecological services necessary for pollination, keeping plant communities healthy and productive. Insects provide a protein food source for numerous species including grassland nesting birds and their young.

Species unique to the MLRA:

Mountain Lions: Mountain lions were absent for many years in MLRA 58C but have recently taken up permanent residency within the region. Mountain lions occur in of the Little Missouri Badlands and woody habitat in MLRA 58C. Rugged terrain and forest provide excellent stalking cover to hunt large mammals and other prey. Mountain lions make use of caves for escape and loafing cover.

Bighorn sheep: Bighorn sheep make use of the rugged terrain, rocky outcrops, and high plateaus of MLRA 58C along the Little Missouri River. North Dakota bighorn sheep populations are almost exclusively within MLRA 58C. Bighorn sheep were once extirpated from North Dakota but were successfully reintroduced in the mid-twentieth century. They now occur in several distinct populations within MLRA 58C. Rocky Mountain juniper encroachment degrades the limited habitat for bighorn sheep. Managers should consider bighorn sheep association with domestic sheep, since transfer of pneumonia and other diseases is known to occur.

Golden eagle: The Badlands within MLRA 58C are key areas for Golden eagle nesting. Adjacent grasslands, shrublands, and black-tailed prairie dog towns are used for hunting.

Bats: Except for hibernacula, MLRA 58C provides life requisites for several bat species, in part due to presence of riparian forest, wooded draws, caves, and rocky outcrops. No known hibernacula have been found in North Dakota.

Short-horned lizard and sagebrush lizard: This MLRA provides preferred habitat for these two species. The short-horned lizard prefers semi-arid, shortgrass prairie in rough terrain; it is uncommon to locally abundant in MLRA 58C. The rare sagebrush lizard prefers sagebrush and rocky areas provided by this MLRA and adjacent MLRA 58D.

Greater sage-grouse and Brewer’s sparrow: The extreme southwest extension of MLRA 58C have ecological sites capable of producing sufficient big sage canopy cover to provide greater sage-grouse life requisites. MLRA 58C and 58D are the only MLRAs in North Dakota that support Wyoming big sage brush (big sage) production. Research data indicates greater sage-grouse prefer big sagebrush canopy cover for nesting at ≥8% with an average height of around 16 inches. The species prefers winter cover canopy that averages 15% with an average height of around 8 inches. Soil site potential, management, climate, and other factors all play a role in the amount, if any, of big sagebrush on an ecological site. Changes in big sage canopy cover occur slowly (30-50 years) unless the site is impacted by fire or cultivation. Big sage recovery after a burn can take 30 to 100 years. Greater sage-grouse and Brewer’s sparrow habitat and populations are reduced or eliminated when big sagebrush canopy is reduced to less than 8% for greater sage-grouse and 10% cover for Brewer’s sparrow. As conifer encroachment increases, greater sage-grouse lekking activity decreases. Once conifer encroachment exceeds 4% canopy cover, no leks remain.

Species of Concern within the MLRA:

Following is a list of species considered “species of conservation priority” in the North Dakota State Wildlife Action Plan (2015); “species of greatest conservation need” in the Montana State Wildlife Action Plan (2015); and species listed as “threatened, endangered, or petitioned” under the Endangered Species Act within MLRA 58C at the time this section was developed:

Invertebrates: Dakota skipper, monarch butterfly, regal fritillary, yellow-banded bumble bee, and western bumble bee

Birds: American kestrel, Baird’s sparrow, bald eagle, black-billed cuckoo, bobolink, Brewer’s sparrow, burrowing owl, chestnut-collared longspur, common poorwill, eastern screech-owl ferruginous hawk, golden eagle, grasshopper sparrow, greater sage-grouse, lark bunting, loggerhead shrike, long-billed curlew, marbled godwit, McCown’s longspur, mountain plover, northern harrier, northern pintail, peregrine falcon (migration), prairie falcon, red knot (migration), red-headed woodpecker, sharp-tailed grouse, short-eared owl, Sprague’s pipit, Swainson’s hawk, upland sandpiper, western meadowlark, Wilson’s phalarope, whooping crane (migration), and willet.

Mammals: Big brown bat, black-footed ferret, black-tailed prairie dog, dwarf shrew, gray wolf, hispid pocket mouse, little brown bat, long-eared bat, long-legged bat, meadow jumping mouse, Merriam’s shrew, northern long-eared bat, porcupine, sagebrush vole, swift fox, Townsend’s big-eared bat, and western small-footed bat.

Amphibians and Reptiles: Common snapping turtle, Great Plains toad, greater short- horned lizard, milk snake, northern leopard frog, plains hognose snake, plains spadefoot, sagebrush lizard, smooth softshell, smooth green snake, and spiny softshell.

Fish and Mussels: Blue sucker, burbot, Flathead chub, northern redbelly dace, sickle-fin chub, pearl dace, shortnose gar, sturgeon chub, and sauger.

Grassland Management for Wildlife in the MLRA:

Management activities within the community phase pathways impact wildlife. Community phase, transitional, and restoration pathways are keys to long-term management within each State and between States. Significant inputs must occur to cross the threshold between States (e.g., State 3.0 to 2.0) requiring substantial economic inputs and management (mechanical, reseeding, prescribed fire, woody vegetation removal, grazing intensity, etc.). Timing, intensity, and frequency of these inputs can have dramatic positive or negative effects on local wildlife species. Ranchers and other land managers must always consider the long-term beneficial effects of management on the habitat in comparison to potential short-term negative effects to individuals.

Ecological sites occur as intermingled complexes on the landscape with gradual or sometimes abrupt transitions. Rarely do ecological sites exist in large enough acreage to manage independently. Ecological sites, supporting a dominance of herbaceous vegetation (Loamy/Limy Residual), can be located adjacent to ecological sites that support medium to tall shrubs (Loamy Overflow). Conversely, ecological sites that are dominated by short to mid statured grasses (Claypan) can be adjacent to sites with bare soil only supporting minor amounts of short grasses and forbs (Thin Claypan).

Management of these complex ecological sites can provide a heterogeneous or a homogenous landscape. Grassland bird use declines as the plant community transitions to a homogenous state. Managers need to recognize ecological sites and the complexes they occur in to properly manage the landscape. A management regime for one ecological site may negatively impact an adjacent site (e.g., alteration of a grazing regime within a Flat Bottom Wooded Draw ecological site to encourage understory growth may encourage exotic, cool-season grasses to increase or dominate an adjacent ecological site).

Life requisites and habitat deficiencies are determined for targeted species. Deficiencies need to be addressed along community phase, transitional, and restoration pathways as presented in specific state and transition models. Ecological sites should be managed and restored within the capabilities of the site to provide sustainable habitat. Managers also need to consider habitat provided by adjacent/intermingled ecological sites for species with home ranges or life requisites that cannot be provided by one ecological site.

With populations of many grassland-nesting birds in decline, it is important to maintain these ecological sites in a 1.0 Reference State or the 2.0 Native/Invaded. Plant communities, optimal for a guild of grassland species, serve as a population source where the birth rate exceeds mortality. Species may use marginal plant communities; however, these sites may function as a population sink where mortality exceeds the birth rate.

Understanding preferred vegetative stature and sensitivity to woody encroachment is necessary to manage for the specific grassland species. Various grass heights may be used for breeding, nesting, foraging, or winter habitat. While most species use varying heights, many have a preferred vegetative stature height. Please reference the provisional ESD on the North Dakota eFOTG (linked below) for a chart that provides preferred vegetative stature heights and sensitivity to woody vegetation encroachment.
https://efotg.sc.egov.usda.gov/references/public/ND/58C_Badland_Fan_Narrative_Final_Ref_FSG.pdf

Badland Fan Wildlife Habitat Interpretation:

Badland Fan ecological sites are affected by deposition of colluvium from adjacent Badland (very steep, barren land consisting of soft sedimentary rocks) from sheet flow or in concentrated flow patterns. Limitations within Badland Fan sites support shorter stature and lower diversity of grasses and forbs for wildlife. Associated ecological sites include Badland, Shallow Loamy, Limy Residual, Thin Claypan, and Very Shallow. This complex of ecological sites provides habitat for many edge-sensitive grassland bird species and prairie dog towns.

Badland Fan habitat features and components commonly support grassland nesting birds, notably sharp-tailed grouse leks. Insects rely on associated forbs and grasses for survival and serve as food sources for birds and their young, and as forage for small and large herbivores.

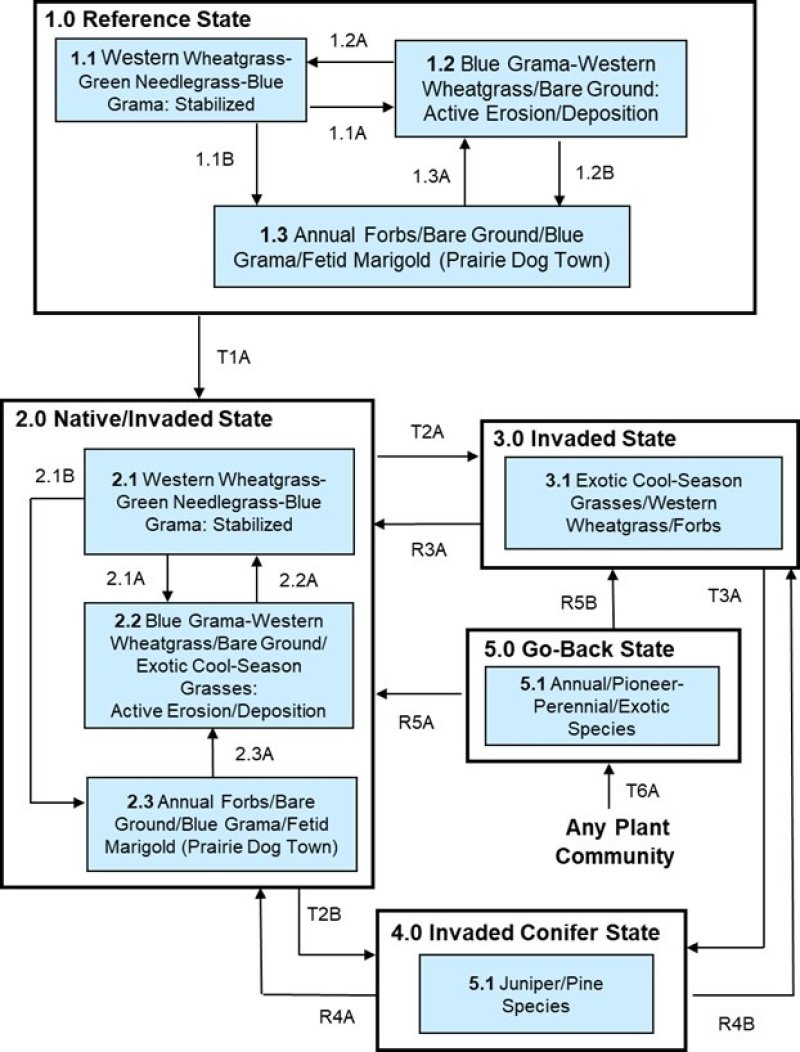

Badland Fan ecological sites may be found in five plant community states (1.0 Reference State, 2.0 Native/Invaded State, 3.0 Invaded State, 4.0 Invaded Conifer State, and 5.0 Go- Back State) within a local landscape. Multiple plant community phases exist within each state. Today, these states occur primarily in response to grazing and drought. Secondary influences include anthropogenic disturbances, black-tailed prairie dogs, and fire.

Because there is no known restoration pathway from State 2.0 to State 1.0, it is important to intensively manage (using tools in the community phase pathways in States 1.0 and 2.0) to prevent further plant community degradation along either the T1A Transitional Pathway to the Native/Invaded State 2.0 or the T2A Transitional Pathway to the Invaded State 3.0 thresholds. Native wildlife generally benefits from grasslands that are heterogeneous in species composition and stature found in States 1.0 and 2.0 that include diverse grass and forb species with varying stature and density. As plant communities degrade within State 2.0, warm-season grasses (particularly short-statured grasses) increase while native forbs are reduced. This transition results in reduced stature and increased plant community homogeneity. When adjacent and/or intermingled ecological sites undergo the same transition, the result can be an expansive, homogenous landscape.

Success along restoration pathway R3A from State 3.0 to State 2.0 is very difficult and is dependent upon the presence of a remnant native grass population. This concept also applies to wildlife, as the target species must either be present on adjacent State 1.0 or State 2.0 plant communities or on ecological sites within the species’ mobility limits. Species with limited mobility, such as some butterflies, must exist near the plant community to utilize restored sites. Mobile species, such as grassland-nesting birds, can easily locate isolated, restored plant communities.

Plant Community Phase 3.1 shows dramatically increased homogeneity of exotic cool- season grasses and further reduction in native forbs. Reduced forb diversity limits insect populations, negatively affecting grassland-nesting bird foraging opportunities. Increased exotic grass litter can limit access to bare ground to nesting insects and can limit mobility by small chicks. A homogenous grassland landscape does not provide quality escape or winter cover. As a result, many species are not able to meet life requisites.

Management along community phase, transition, or restoration pathways should focus upon attainable changes. Short- and long-term monetary costs must be evaluated against short- and long-term ecological services in creating and maintaining habitat of sufficient quality to support a sustainable population density.

1.0 Reference State

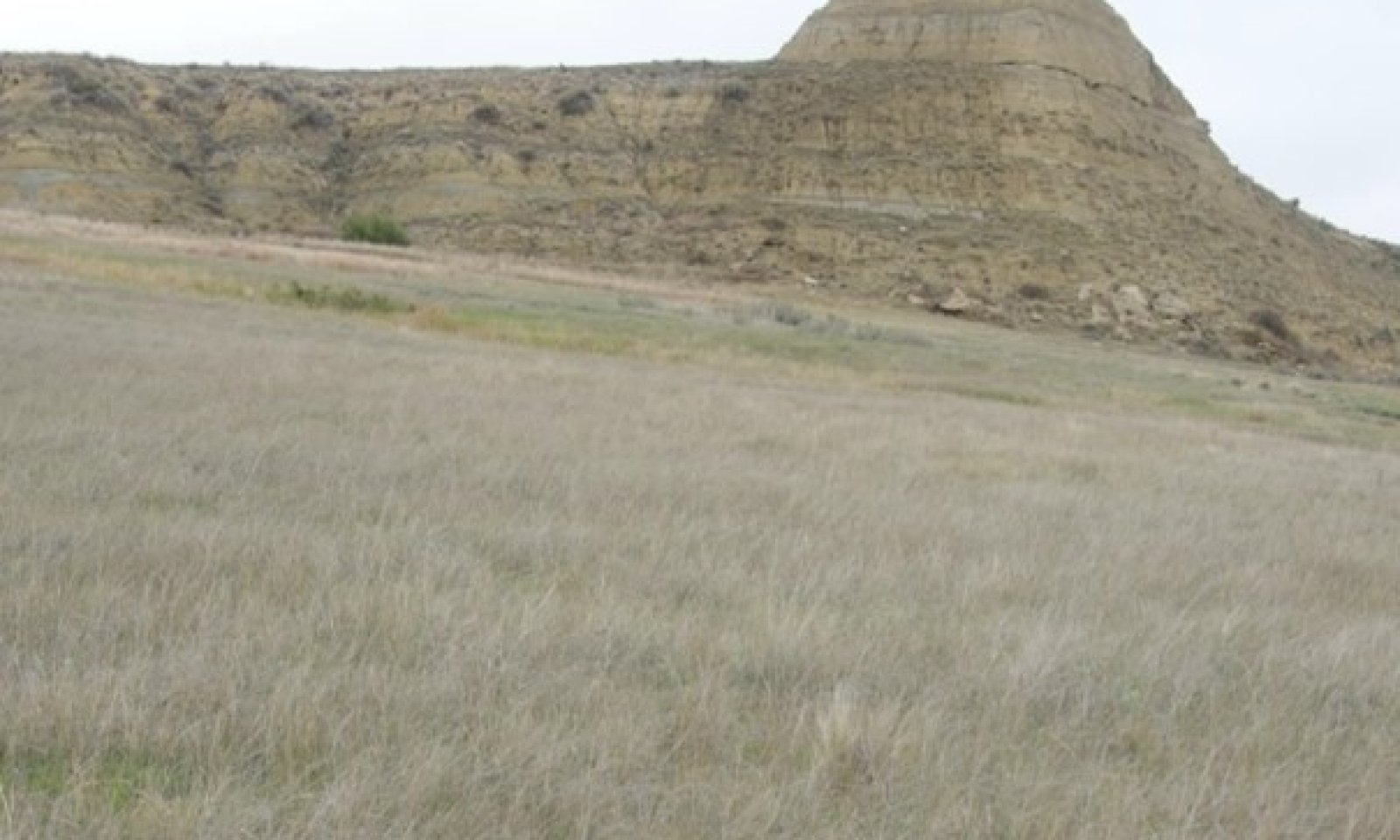

Community Phase 1.1 Western Wheatgrass-Green Needlegrass-Blue Grama:
Stabilized: This plant community offers good wildlife habitat; every effort should be made to maintain this ecological site within this community phase. This phase retains high functionality through continued maintenance including prescribed grazing with adequate recovery period as well as prescribed burning. Predominance of grass species in this community favors grazers and mixed- feeders (animals selecting grasses as well as forbs and shrubs). The structural diversity provides habitat for a wide array of migratory and resident birds.

Invertebrates: Insects play a role in maintaining the forb community and provide a forage base for grassland birds, reptiles, and rodents. Ecological services, historically provided by bison, are mirrored by domestic livestock. These services include putting plant material and dung in contact with mineral soil to be used by lower trophic level consumers (such as invertebrate shredders, predators, herbivores, dung beetles, and fungal-feeders).

Dakota skippers do not prefer this site due to limited host plants, such as little bluestem and prairie dropseed. Nuttall's and prairie violets are uncommon, limiting Regal fritillary habitat. Monarch butterflies may use flowering forbs on this site; however, few milkweed species are found on this site to support caterpillar food. Bumblebees and other native bees utilize season- long forbs as a nectar source and bare ground for nesting amongst bunchgrasses. Prescribed grazing with adequate recovery periods (as well as prescribed fire) to maintain the 1.1 Phase has little effect on nests of ground-dwelling insects.

Birds: This plant community provides quality nesting, foraging, and escape habitats favored by short- to midgrass nesting birds. Plant stature may be too dense or tall for burrowing owl and McCown’s longspur; however, it may be used during periods of drought or management (such as rotational grazing or fire) that results in defoliation along Community Phase Pathway 1.1A.

Several species of grassland birds that prefer short- to mid-grass stature will use this site. In years with reduced precipitation or drought, nesting recruitment may be compromised. This plant community provides suitable areas for sharp-tailed grouse leks, nesting, and brood-rearing habitat with limited winter habitat. Limited stature and diverse prey populations provide good hunting opportunities for grassland raptors.

Mammals: The diversity of grasses and forbs provide high nutrition levels for small and large herbivores including voles, mice, rodents, jackrabbits, pronghorn, and deer (white-tailed and mule). Short- to moderate-statured vegetation provides suitable food and thermal, protective, and escape cover for small herbivores such as the hispid pocket mouse.

Amphibians and Reptiles: This ecological site and associated plant communities provide habitat for smooth green snakes. This ecological site can provide habitat for the northern leopard frog and Great Plains toad if freshwater habitats (such as stock water ponds) are located in or adjacent to the site. Silver sagebrush provides habitat to support sagebrush lizard; however, due to the lack of sandy soils and/or rocky areas, neither the sagebrush lizard nor short-horned lizard may use this ecological site. This ecological site provides limited habitat for the plains hog-nosed snake (prefer sandy soils) and plains spadefoot (prefer gravelly or sandy soils).

Fish and Mussels: This ecological site is not directly associated with streams, rivers, or water bodies. Associated ecological sites, such as Clayey or Limy Residual, can receive run-on hydrology from Badland Fan sites. Management on these interconnected sites will have limited, secondary effects on aquatic species.

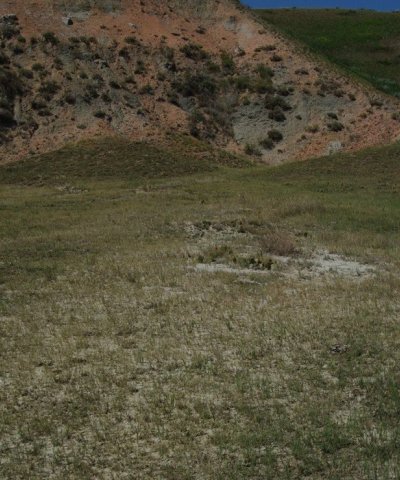

Community Phase 1.2 Blue Grama-Western Wheatgrass/Bare Ground: Active Erosion/Deposition: Blue grama and western wheatgrass will dominate due to naturally occurring active soil erosion/deposition. This plant community is 85% grasses and grass-like species, with 10% forbs and 5% shrubs. The dominant forbs include white sagebrush, pennyroyal, spiny phlox, woolly plantain, scarlet globemallow, and yellow salsify. The dominant shrubs are prairie rose, silver sagebrush, western snowberry, and prairie sagewort. However, Wyoming big sage could be present due to the abundance of bare ground and lack of fine fuel to carry a fire. If present, Wyoming big sage will be located along the transition zone between the Badland landform, not providing sufficient habitat to meet greater sage grouse life requisites.

Invertebrates: The combination of forbs and flowering shrubs provides season long pollen and nectar sources for native pollinators. However, this site does not provide life requisites for butterfly species of concern. Abundant bare ground provides nesting sites for ground nesting pollinator species.

Birds: This plant community provides nesting, foraging, and escape habitats favored by short- to mid-grass nesting birds. A shift to shorter herbaceous plant statures and a short shrub component along Community Phase Pathway 1.1A begins to benefit McCown’s longspur, chestnut-collared longspur, horned lark, and burrowing owl. Species that prefer short- to mid- grass statures will be generally successful with normal to above normal precipitation. In years with reduced precipitation or heavy grazing, nesting recruitment may be compromised for midgrass nesting species. This plant community provides areas suitable for sharp-tailed grouse leks. Limited cover and diverse prey populations provide good hunting opportunities for grassland raptors.

Mammals: Provides similar life requisites as Community Phase 1.1.

Amphibians and Reptiles: Provides similar life requisites as Community Phase 1.1.

Fish and Mussels: Provides similar life requisites as Community Phase 1.1.

Community Phase 1.3 Annual Forbs/Bare Ground/Blue Grama/Fetid Marigold (Prairie Dog Town): This plant community phase is characterized by grazing-tolerant species and annual forbs (e.g., fetid marigold). Continued heavy grazing, repeated drought, short-term prairie dog occupation, or a combination of these disturbances will shift to increased annual forbs with a reduction in perennial grasses. Moderate perennial forbs stature and abundance are being replaced by short-statured annual forbs. Bare ground increases and litter amounts and infiltration rates decline while soil surface temperatures increase. This plant community is resilient, retaining sufficient grazing sensitive native plant species to return to the 1.2 community phases (via Community Phase Pathway 1.3A) by removing prairie dogs and implementing a prescribed grazing system.

Invertebrates: A switch to annual forbs from perennial forbs will not have a significant impact to invertebrates but may reduce season-long nectar producing plants for pollinators. Season-long nectar sources may be found on adjacent plant communities or ecological sites for mobile species. Increased bare ground and prairie dog burrow sites provide increased nesting sites for bumble bees and other ground-nesting insects.

Birds: This very short-statured phase, driven by continued over grazing or prairie dog occupation, is favored by burrowing owls, chestnut-collared longspur, and McCown’s longspur. Prairie dog towns provide abundant prey populations for grassland raptors. The lack of grass and forb stature limits use by many bird species. The invasion of exotic cool-season grasses following Transitional Phase Pathway T1A leads to the 2.0 State and Plant Community Phase 2.3 with no known return pathway due to the presence of exotic cool-season grasses.

Mammals: Suitable food, thermal, shelter, and escape cover (reduction in litter) for most mammals becomes limited. The loss of diversity of grasses and forbs reduces nutrition levels for small and large herbivores, including rodents, white-tailed jackrabbits, and deer. Grazers, such as pronghorn and bison, use prairie dog towns for foraging and loafing.

Amphibians and Reptiles: Prairie dog towns provide habitat for both amphibians and reptiles. Tiger salamanders, prairie rattlesnakes, and other snake species will use the burrow systems of prairie dogs for shelter and denning.

Fish and Mussels: Provides similar life requisites as Community Phase 1.1.

2.0 Native Invaded State

Community Phase 2.1 Western Wheatgrass-Green Needlegrass-Blue Grama: Stabilized:
This plant community develops through Transition pathway T1A, due to changes in management (chronic season-long or heavy late season grazing or complete long-term rest) and the presence of exotic, cool-season grasses. The threshold between states 1.0 and 2.0 is crossed when Kentucky bluegrass, crested wheatgrass, annual bromes, or other exotic species become established. This plant community phase has a very similar appearance and function to the Reference State of Community 1.1, except it has a minor amount of cool-season exotic grasses and forbs. This phase functions at a high level for native wildlife; therefore, managers should consider the 2.0 community phase pathways to avoid transitioning to State 3.0.

Invertebrates: Provides similar life requisites as Community Phase 1.1.

Birds: Provides similar life requisites as Community Phase 1.1.

Mammals: Provides similar life requisites as Community Phase 1.1.

Amphibians and Reptiles: Provides similar life requisites as Community Phase 1.1.

Fish and Mussels: Provides similar life requisites as Community Phase 1.1.

Community Phase 2.2 Blue Grama-Western Wheatgrass/Bare Ground/Exotic Cool-Season Grasses: Active Erosion/Deposition: Blue grama and western wheatgrass will dominate due to naturally occurring active soil erosion/deposition. Continuous grazing or over-utilization will compound the effects of soil erosion. This plant community is 85% grasses and grass-like species, with 10% forbs, and 5% shrubs. The dominant forbs include white sagebrush, pennyroyal, spiny phlox, woolly plantain, scarlet globemallow, and yellow salsify, goldenrod, white heath aster, silverleaf Indian breadroot, and common yarrow. The dominant shrubs are prairie rose, silver sagebrush, western snowberry, and prairie sagewort. However, Wyoming big sage could be present due to the abundance of bare ground and lack of fine fuel to carry a fire. If present, Wyoming big sage will be located along the transition zone between the Badlands landform, not providing sufficient habitat to meet greater sage grouse life requisites. Prescribed grazing with adequate recovery periods (along Community Phase Pathway 2.2A) will help enhance plant vigor and species composition reducing bare ground to regain the cool-season grass and forb diversity components in Community Phase 2.1.

Invertebrates: Provides similar life requisites as Community Phase 1.2.

Birds: Provides similar life requisites as Community Phase 1.2.

Mammals: Provides similar life requisites as Community Phase 1.1.

Amphibians and Reptiles: Provides similar life requisites as Community Phase 1.1.

Fish and Mussels: Provides similar life requisites as Community Phase 1.1.

Community Phase 2.3 Annual Forbs/Bare Ground/Blue Grama/Fetid Marigold (Prairie Dog Town): This plant community is a result of ecological services provided by long-term black-tailed prairie dog occupation coupled with the introduction of exotic cool-season grasses and annual forbs along transitional pathway T1B. Utilizing one or more tools in community phase pathway 2.3A (e.g., removal of black-tailed prairie dogs, control of exotic perennial forbs, implementation of prescribed grazing) can move this community back to phase 2.2; but this may require significant management and economic inputs.

Invertebrates: Provides similar life requisites as Community Phase 1.3.

Birds: Provides similar life requisites as Community Phase 1.3.

Mammals: Provides similar life requisites as Community Phase 1.3.

Amphibians and Reptiles: Provides similar life requisites as Community Phase 1.3.

Fish and Mussels: Provides similar life requisites as Community Phase 1.1.

3.0 Invaded State

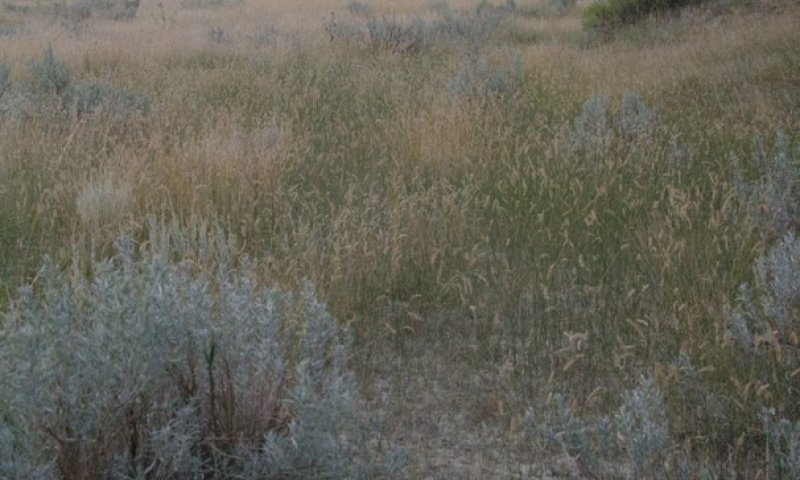

Community Phase 3.1 Exotic Cool-Season Grasses/Western Wheatgrass/Forbs: Community phase pathway T2A is characterized by non-use (10 or more years) or low intensity (<20% utilization) grazing and elimination of fire when exotic cool-season grasses are present (as in community phase 2.0). This plant community phase is characterized by a dominance (>30%) to a complete dominance of exotic cool-season grasses (such as Kentucky bluegrass, crested wheatgrass, and/or annual bromes). Restoration pathway R3A requires remnant amounts of native warm-season grasses (i.e., blue grama), cool-season grasses (i.e., needlegrasses, western wheatgrass, prairie Junegrass), and forbs (i.e., silverleaf Indian breadroot and blacksamson echinacea). These remnant populations can only be expressed through frequent prescribed burns and high levels of prescribed grazing management targeting the exotic cool-season grasses. Intensified management along the R3A pathway will have significant short-term negative impacts on wildlife habitat; however, this is necessary to restore long-term native habitat functions.

Invertebrates: Non-use or low intensity (<20% utilization) grazing limits use by beneficial insects provided in States 1.0 and 2.0. Increased litter and lack of grazing leads to limited contact between plant material and mineral soil resulting in a cooler micro-climate, which is unfavorable to most insects. Lack of bare soil limits ground-nesting sites for native bees and other ground- nesting insects. The lack of nectar producing plants limits forage opportunities for bumblebees other pollinating species. This site does not provide life requisites for butterfly species of concern.

Birds: This homogeneous community phase, dominated by exotic plant species, provides limited habitat and life requisites for most obligate grassland-nesting birds. Lack of plant diversity and stature, along with increased litter and the tendency of Kentucky bluegrass and smooth brome to lay down, limits use by many grassland-nesting birds. Litter accumulations reduce use by chestnut-collared and McCown’s longspurs. Woody vegetation invasion is limited to prairie sagewort, not impacting grassland-nesting birds that tend to avoid woody vegetation.

Mammals: Black-tailed prairie dog expansion is possible in this plant community phase. This community phase provides limited foraging habitat for pronghorn and deer. Litter accumulation favors thermal, protective, and escape cover for small rodents. However, reduced availability of native grass seed may reduce food availability for species such as the hispid pocket mouse.

Amphibians and Reptiles: Provides similar life requisites as Community Phase 1.1.

Fish and Mussels: Provides similar life requisites as Community Phase 1.1.

4.0 Invaded Conifer State

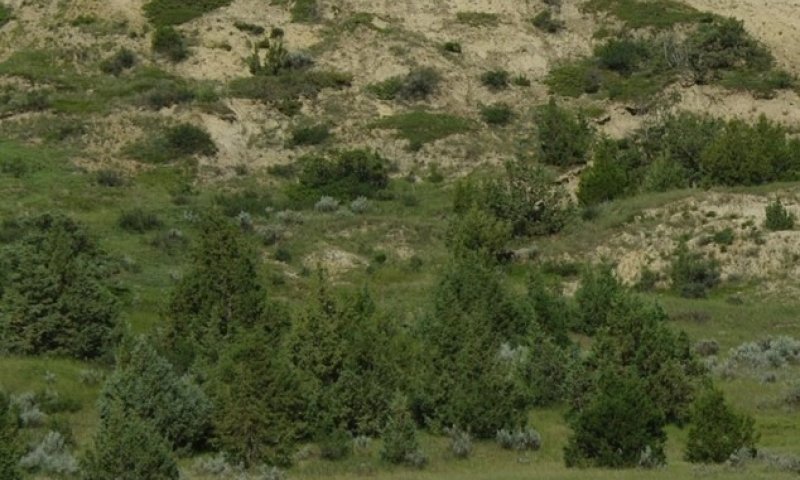

Community Phase 4.1 Juniper/Pine:
Resulting from Pathways T2B and T3A, elimination of fire is the major contributor to this community phase crossing the threshold from an herbaceous plant community to a community completely dominated by Rocky Mountain juniper and/or ponderosa pine. Badland Fan sites did not historically support a Rocky Mountain juniper/pine plant community. This phase is dependent upon seed dispersal by birds and mammals from nearby sites. Dense conifers lead to changes in soil chemistry and a change in the associated herbaceous plant community. A detritus layer of juniper needles- leaves, shade, shallow root system, and interception of precipitation with a possible soil chemistry change (decrease in pH) reduces or eliminates an herbaceous or forb understory.

Invertebrates: Junipers are wind-pollinated and thus do not benefit pollinating insects. The loss of a forb component limits insect populations.

Birds: Junipers occur along a continuum. Light infestation may continue to support some grassland and open-area species tolerant of woody invasion (e.g., lark sparrow, vesper sparrow). Bird species intolerant of woody vegetation is eliminated. Species associated with woodlands and woodland edges will increase. The presence of woody plant species may increase predation by mammals and avian predators and brood parasitism by brown- headed cowbirds. Nearly all grassland-nesting bird species are negatively affected by Community Phase 4.1.

Mammals: Nearly all bat species in North Dakota use Community Phase 4.1 for roost sites if mature trees are available. Nearby community phases supporting insects provide foraging opportunities. This phase provides significant thermal, escape and loafing habitat for elk and deer.

Amphibians/Reptiles: Community Phase 4.1 will not support most of the amphibians and reptiles expected to be present in State 1.0, 2.0 and 3.0. Community Phase 4.1 may support some frog species and sagebrush lizards when adjacent to sites supporting sagebrush habitats.

Fish and Mussels: Provides similar life requisites as Community Phase 1.1.

5.0 Go-back State

Community Phase 5.1 Annual/Pioneer-Perennial/Exotic Species: This plant community is the result of severe soil disturbance (such as cropping, recreational activity, or concentrated livestock activity for a prolonged period). Following cessation of disturbances, the resulting plant community is dominated by early pioneer annual and perennial plant species. Plant species composition and production are highly variable. Weedy plants can provide pollinator habitat along with spring and summer cover for many mammals and birds, and their young. Badland Fan ecological sites support short- to mid-statured annual weeds - such as Russian thistle, burning bush (aka kochia), and annual bromes. Russian thistle and burning bush provide seed sources for various grassland-nesting birds and forage for large and small ungulates. They may also provide escape, thermal, and winter cover (depending on location and density).

Successful restoration of native species along transition pathway R5A results in a native grass and forb community in State 2.0. Failed restoration to native species through restoration pathway R5B results in Invaded State 3.0. Wildlife species response will be dependent upon plant community composition, vegetative stature, patch size, and management activities (such as prescribed grazing, burning, inter-seeding, haying, or noxious weed control).

Animal Community -- Grazing Interpretations

This site is well adapted to managed grazing by domestic livestock. The predominance of herbaceous plants across all plant community phases best lends these sites to grazing by cattle; but other domestic grazers with differing diet preferences may also be a consideration depending upon management objectives. Often, the current plant community does not match any particular plant community (as described in the ecological site description). Because of this, a resource inventory is necessary to document plant composition and production. Proper interpretation of this inventory data will permit the establishment of a safe, initial stocking rate for the type and class of animals and level of grazing management. More accurate stocking rate estimates should eventually be calculated using actual stocking rate information and monitoring data.

NRCS defines prescribed grazing as “managing the harvest of vegetation with grazing and/or browsing animals with the intent to achieve specific ecological, economic, and management objectives”. As used in this site description, the term ‘prescribed grazing’ is intended to include multiple grazing management systems (e.g., rotational grazing, twice-over grazing, conservation grazing, targeted grazing, etc.) provided that, whatever management system is implemented, it meets the intent of prescribed grazing definition.

The basic grazing prescription addresses balancing forage demand (quality and quantity) with available forage, varying grazing and deferment periods from year-to-year, matching recovery/deferment periods to growing conditions when pastures are grazed more than once in a growing season, implementation of a contingency (e.g., drought) plan, and a monitoring plan. When the management goal is to facilitate change from one plant community phase or state to another, then the prescription needs to be designed to shift the competitive advantage to favor the native grass and forb species.

Grazing levels are noted within the plant community narratives and pathways in reference to grazing management on adjacent sites. “Degree of utilization” is defined as the proportion of the current years forage production that is consumed and/or destroyed by grazing animals (may refer to a single plant species or a portion or all the vegetation). “Grazing utilization” is classified as slight, moderate, full, close, and severe (see the following table for description of each grazing use category). The following utilization levels are also described in the Ranchers Guide to Grassland Management IV. Utilization levels are determined by using the landscape appearance method as outlined in the Interagency Technical Reference “Utilization Studies and Residual Measurements” 1734-3.

Utilization Level:
Slight (Light) 0-20% Appears practically undisturbed when viewed obliquely. Only choice areas and forage utilized.

Moderate 20-40% Almost all of accessible range shows grazing. Little or no use of poor forage. Little evidence of trailing to grazing.

Full 40-60% All fully accessible areas are grazed. The major sites have key forage species properly utilized (about half taken, half left). Points of concentration with overuse limited to 5 to 10 percent of accessible area.

Close (Heavy) 60-80% All accessible range plainly shows use and major sections closely cropped. Livestock forced to use less desirable forage, considering seasonal preference.

Severe > 80% Key forage species completely used. Low-value forages are dominant.

Hydrological functions

Water is the principal factor limiting herbage production on this site. The site is dominated by soils in hydrologic group B. Infiltration rate is moderate or moderately slow; runoff potential for this site varies from low to very high depending upon surface texture, slope and ground cover. In many cases, areas with greater than 75% ground cover have the greatest potential for high infiltration and lower runoff. An exception would be where short grasses form a dense sod and dominate the site. Areas where ground cover is less than 50% have the greatest potential to have reduced infiltration and higher runoff (refer to Section 4, NRCS National Engineering Handbook for runoff quantities and hydrologic curves).

Recreational uses

The largest acreage of public land available for recreation in the MLRA is owned and managed by the United States Forest Service (USFS) within the Little Missouri National Grasslands in North Dakota (525,211 acres). These areas are available for hunting, fishing, hiking, camping, horse and bike riding, nature viewing, etc. In addition, the Bureau of Land Management (BLM) manages 30,895 acres in North Dakota and Montana with the same recreational opportunities as the USFS lands. North Dakota and Montana Department of Trust Lands (80,220 acres) provide hunting, bird watching, hiking, and other outdoor recreation opportunities. North Dakota Wildlife Management Areas (3,447 acres) of land managed by the states for wildlife habitat in MLRA 58C.

MLRA 58C is home to the North and South Units of Theodore Roosevelt National Park. The Park encompasses approximately 70,000 acres and welcomes approximately 900,000 visitors annually. 29,920 acres of the park is designated Wilderness Area. The south unit of the park has a 48-mile scenic drive while the north unit has a 28-mile scenic drive. The Badland and associated ecological sites provide the main scenery attraction.

Bird watching: Public and private grasslands within MLRA 58C provide essential habitat for prairie-dependent bird species (such as Sprague's pipits, western meadowlark, and Baird's sparrow) along with some of the larger, showy members of the upland prairie including marbled godwits, upland sandpipers, and willets. The abundance of publicly owned lands (such as Theodore Roosevelt National Park, USFS, North Dakota Department of Trust Lands, BLM, etc.) provide excellent birding opportunities. MLRA 58C is in the Central Flyway.

Hunting/Fishing: MLRA 58C is a fall destination for upland game bird hunters, especially sharp-tailed grouse. This MLRA also provides excellent white-tailed deer, mule deer, pronghorn, elk, coyote, and mountain lion hunting opportunities along with the only bighorn sheep hunting units in the North Dakota. The North Dakota Game and Fish Department manages three man-made fishing lakes within the MLRA. Available species include rainbow and brown trout, bluegill, and largemouth and smallmouth bass.

Camping: Many camping opportunities exist in the MLRA. Modern and primitive camping is available at the Theodore Roosevelt National Park, Sully’s Creek State Park, Little Missouri State Park, Buffalo Gap Campground, BLM land, and the Dakota Prairie National Grasslands. The Sully’s Creek and Little Missouri State Parks are designated horse parks.

Hiking/Biking: Over 150 miles of the May-Daah-Hey Trail provide some of the best single-track trails in the world for biking, hiking, or horseback riding. The International Mountain Biking Association (IMBA) has designated the hiking, biking, and horseback riding trail as EPIC - meaning it’s one of the top mountain biking trails in the United States. The trail has nine fenced campgrounds, each accessible by gravel surfaced roads; they include camping spurs, potable water, hitching rails, picnic tables, fire rings, and accessible toilets. They are spaced about every 20 miles along the trail. The North and South Units of the Theodore Roosevelt National Park provide 38.9 and 49.6 miles, respectively, of hiking trails for walkers, bikers, or horseback riders. The Little Missouri State Park has 45 miles of trails that run through the North Dakota Badlands.

Canoeing: Traversing 274 miles through MLRA 58C, the Little Missouri River provides early spring canoeing and kayaking. The Little Missouri River is the only designated State Scenic River in the MLRA. The river passes through Sully Creek State Park, the Little Missouri National Grassland, and Theodore Roosevelt National Park.

Wood products

No appreciable wood products are present on the site.

Other products

Seed harvest of native plant species can provide additional income on this site.

Other information

Site Development and Testing Plan:

Further Investigation is needed on the Sham components included in this ecological site. The central concept of the Badland Fan site is E.C. <8 to a depth of 40 inches. However, many Sham components have been populated E.C. 8-16 within a depth of 16 inches. The soil salinity levels, and associated plant communities needs field documentation. It is currently thought that these components are mostly associated with the Hell Creek formation. Two MLRA map units that have major components of Sham with moderate salinity are:

Patent, gullied, frequently flooded-Sham-Patent complex, 2 to 15 percent slopes (map unit 2q2n9)

Sham loam, 2 to 9 percent slopes (map unit 2qz6q)

This ESD is the best available current knowledge. The site concept and species composition table have been used in the field and tested for more than five years. It is expected that as additional information becomes available revisions may be required.

Inventory data references

Information presented here has been derived from NRCS and other federal/state agency clipping and inventory data. Also, field knowledge of range-trained personnel was used. All descriptions were peer reviewed and/or field-tested by various private, state, and federal agency specialists.

Other references

Abbott, P.L., 2004, Natural disasters, New York, McGraw-Hill Companies, Inc., 460 p.

Bakker, K.K. 2003. The effect of woody vegetation on grassland nesting birds: an annotated bibliography. The Proceedings of the South Dakota Academy of Science 82:119-141.

Barker, W.T. and W. C. Whitman. 1988. Vegetation of the Northern Great Plains. Rangelands 10: 266-272h

Barnhart, Paul. 2017. Documentation of overwintering bat species presence and hibernacula use in the badlands of North Dakota, Northwestern Naturalist 98(1), 48-56, (1 March 2017). https://doi.org/10.1898/NWN15-34.1.

Bjustad, A. J. 1965. Vegetation measurements in relation to range condition classification on the principal range sites of southwestern North Dakota. Ph.D. Thesis. North Dakota State University.

Bluemle. J.P. 2016. North Dakota’s geologic legacy. North Dakota State University Press. 382 pages.

Brand, M. D. and H. Goetz. 1986. Vegetation of exclosures in southwestern North Dakota. Journal of Range Management 39:434-437.

Briske, D.D. (editor). 2017. Rangeland systems – processes, management, and challenges. Springer Series on Environmental Management. 661 pages.

DeKeyser, S., G. Clambey, K. Krabbenhoft and J. Ostendorf. 2009. Are changes in species composition on central North Dakota rangelands due to non-use management? Rangelands 31:16-19.

Dodd, J.L. 1970. Distribution and community site relations of bluebunch wheatgrass in North Dakota. Ph.D. Thesis. North Dakota State University.

Dyke, S. R., S. K. Johnson, and P.T. Isakson. 2015. North Dakota state wildlife action plan – North Dakota Game and Fish Department.

Ehrenfeld, J.G. 2002. Effects of exotic plant invasions on soil nutrient cycling processes. Ecosystems 6:503-523.

Endangered and threatened wildlife and plants; designation of critical habitat for the Dakota skipper and Poweshiek skipperling; Vol. 79 No. Final Rule October 1, 2015, 50 CFR Part 17.

Ereth, C., J. Hendrickson, D. Kirby, E. DeKeyser, K. Sedevic, and M. West. Controlling Kentucky bluegrass with herbicide and burning is influenced by invasion level. Invasive Plant Science and Management 10:80-89.

Flesland, J.R. 1964. Composition and structure of the salt-desert shrub type in the badlands of western North Dakota. M.S. Thesis. North Dakota State University.

Gilgert, W.; and S. Zack. 2010. Integrating multiple ecosystem services introduction ecological site descriptions. Rangelands 32:49-54.

Gillam, Erin. Distribution and habitat use of the bats of North Dakota, Final Report, T2-5-R Bat Survey Final Report 2012_0.pdf (nd.gov).

Grant, T.A. and R.K. Murphy. 2005. Changes on woodland cover on prairie refuges in North Dakota, USA. Natural Areas Journal 25:359-368.

Hanson, H.C and W. Whitman. 1938. Characteristics of major grassland types in western North Dakota. Ecological Monographs 8:57-114.

Heitschmidt, R. K., K. D. Klement, and M. R. Haferkamp. 2005. Interactive effects of drought and grazing on Northern Great Plains rangelands. Rangeland Ecology and Management 58:11-19.

Hendrickson, J.R., P. S. Johnson, M. A. Liebig, K. K. Sedivec, and G. A. Halvorson. 2016. Use of ecological sites in managing wildlife and livestock: an example with prairie dogs. Rangelands 38:23- 28.

Higgins, K.F. 1984. Lightning fires in North Dakota grasslands and in pine-savanna lands of South Dakota and Montana. Journal of Range Management 37:100-103.

Higgins, K.F. 1986. Interpretation and compendium of historical fire accounts in the northern great plains. United States Department of Interior, Fish and Wildlife Service. Resource Publication 161. 39 pages.

Higgins, K. F., A. D. Kruse, and J. L. Piehl. 1987. Effects of fire in the northern Great Plains. South Dakota State University Extension Circular Paper 429.

High Plains Regional Climate Center, University of Nebraska. http://hprcc.unl.edu, Accessed on May 1, 2017.

Hirsch, K.L. 1985. Habitat type classification of grasslands and shrublands of southwestern North Dakota. Ph.D. Thesis. North Dakota State University.

Johnson, S. 2015. Reptiles and amphibians of North Dakota. North Dakota Game and Fish Department. 64 pages.

Jordan, N. R., D.L. Larson, and S.C. Huerd. 2008. Soil modification by invasive plants: effects on native and invasive species of mixed-grass prairies. Biological Invasions 10:177-190.

Mader, E., M. Shepherd, M. Vaughan, and S.H. Black. 2011. Attracting native pollinators: protecting North America's bees and butterflies. Accessed at https://xerces.org, May 1, 2017.

Montana’s State Wildlife Action Plan. 2015. Montana Fish, Wildlife and Parks. Viewed at https://xerces.org/ on May 1, 2017.

North Dakota Division of Tourism, Accessed on February 25, 2019. Available at https://www.ndtourism.com/sports-recreation

North Dakota Parks and Recreation Department, Accessed on February 25, 2019. Available at http://www.parkrec.nd.gov/recreationareas/recreationareas.html

Palit, R., G. and E.S. DeKeyser. 2022. Impacts and drivers of smooth brome (Bromus inermis Leyes.) invasion in native ecosystems. Plants: 10,3390. http://https://www.mdpi.com/2223-7747/11/10/1340

Palit, R., G. Gramig, and E.S. DeKeyser. 2021. Kentucky bluegrass invasion in the Northern Great Plains and prospective management approaches to mitigate its spread. Plants: 10,817. https://doi.org/10.3390/plants10040817

Printz, J.L. and J.R. Hendrickson. 2015. Impacts of Kentucky bluegrass invasion (Poa pratensis) on ecological processes in the Northern Great Plains. Rangelands 37:226-232.
Redmann, R.E. 1975. Production ecology of grassland plant communities in western North Dakota. Ecological Monographs 45:83-106.

Reeves, J.L., J.D. Derner, M.A. Sanderson, J.R. Hendrickson, S.L. Kronberg, M.K. Petersen, and L.T. Vermeire. 2014. Seasonal weather influences on yearling beef steer production in C3-dominated Northern Great Plains rangeland. Agriculture, Ecosystems and Environment 183:110-117.

Robinson, A.C. 2014. Management plan and conservation strategies for greater sage grouse in North Dakota. North Dakota Game and Fish Department.

Royer, R. A., 2003. Butterflies of North Dakota: an atlas and guide. Minot State University.

Sanford, R.C. 1970. Skunk bush in the North Dakota badlands: ecology, phytosociology, browse production, and utilization. Ph.D. Thesis. North Dakota State University.

Seabloom, R. 2020. Mammals of North Dakota. North Dakota State University Press.

Sedivec, K.K., and J.L. Printz. 2014. Ranchers guide to grassland management IV. North Dakota State University Extension Service publication R1707.

South Dakota Dept. of Game, Fish and Parks. 2014. South Dakota wildlife action plan. Wildlife Division Report 2014-03.

Spaeth, K.E., Hayek, M.A., Toledo, D., and Hendrickson, J. 2019. Cool season grass impacts on native mixed grass prairie species in the Northern Great Plains. America’s Grassland Conference: Working Across Boundaries. The Fifth Biennial Conference on the Conservation of America’s Grasslands. Bismarck, ND. 20-22 August.

Steffens, Tim, G. Grisson, M. Barnes, F. Provenza, and R. Roath. Adaptive grazing management for recovery. Know why you’re moving from paddock to paddock. Rangelands 35(5):28–34

Tidwell, D., D.T. Fogarty, and J.R. Weir. 2021. Woody encroachment in grasslands, a guide for understanding risk and vulnerability. Oklahoma State University, Oklahoma Cooperative Extension Service Publication E-1054. 32 pages.

Toledo, D., M. Sanderson, K. Spaeth, J. Hendrickson, and J. Printz. 2014. Extent of Kentucky bluegrass and its effect on native plant species diversity and ecosystem services in the Northern Great Plains of the United State. Invasive Plant Science and Management 7:543-552.

United States Department of Agriculture, Natural Resources Conservation Service. 2006. Land Resource Regions and Major Land Resource Areas of the United States, the Caribbean, and the Pacific Basin. U.S. Department of Agriculture Handbook 296.

USDA, NRCS. National Water and Climate Center. (http://www.wcc.nrcs.usda.gov) USDA, NRCS. National range and pasture handbook, September 1997.

USDA, NRCS. National Soil Information System, Information Technology Center. Accessed on May 1, 2017 at http://nasis.nrcs.usda.gov.

USDA, NRCS. 2001. The PLANTS Database, Version 3.1. http://plants.usda.gov. Accessed May 2, 2017.

USDA, NRCS. 2021. Species diversification of crested wheatgrass dominated grasslands: a review of methods. Plant Materials Technical Note No. MT-126 November 2021.

USDA, NRCS, Various published soil surveys.

USDI BLM. Utilization studies and residual measurements. Interagency Technical Reference 1734-3. 1999.

Vinton, M.A. and E.M. Goergen. 2006. Plant-soil feedbacks contribute to the persistence of Bromus inermis in tallgrass prairie. Ecosystems 9:967-976.

Whitman, W., H. Hanson, and R. Peterson. 1943. Relation of drought and grazing to North Dakota rangelands. North Dakota Agricultural Experimentation Bulletin 320.

Zaczkowski, N. K. 1972. Vascular flora of Billings, Bowman, Golden Valley, and Slope counties, North Dakota. Ph.D. Thesis, North Dakota State University.

Zimmerman, G. M. 1981. Effects of fire upon selected plant communities in the little Missouri badlands. M.S. Thesis, North Dakota State University.

Contributors

ND NRCS: David Dewald, Alan Gulsvig, Mark Hayek, Jeanne Heilig, John Kempenich, Chuck Lura, Jeff Printz, and Steve Sieler.

Approval

Suzanne Mayne-Kinney, 4/21/2025

Acknowledgments

NRCS would like to acknowledge the United State Forest Service (USFS) and National Park Service (NPS) for access to USFS and NPS properties and technical assistance in ESD development. USFS: Jack Dahl, Nickole Dahl, Chad Prosser, Jack Butler; NPS: Chad Sexton.
.
