Physiographic features

This site typically occurs on glaciated uplands – till plains and lake plains, but also occurs on escarpments. This site is typically on linear back slopes, concave foot slopes, or on flats of till and lake plains; on escarpments, it is on lower side slopes and base slopes. Slopes are 0 to 15 percent. The parent material incudes fine-loamy or clayey till (some mantled with silty loess), fine-silty or clayey glaciolacustrine deposits, and clayey colluvium.

Table 2. Representative physiographic features

Climatic features

MLRA 55B is considered to have a continental climate – cold winters and hot summers, low humidity, light rainfall, and much sunshine. Extremes in temperature are characteristic of the MLRA. The climate is the result of this MLRA’s location in the geographic center of North America. There are few natural barriers on the northern Great Plains. The air masses move unobstructed across the plains and account for rapid changes in temperature.

Annual precipitation ranges from 18 to 23 inches per year. The normal average annual temperature is about 41.5° F. January is the coldest month with average low temperature ranging from about -4.3° F (Petersburg, ND) to about 2.5° F (Mellette, SD). July is the warmest month with temperatures averaging from about 79° F (Petersburg, ND) to about 84° F (Mellette, SD). The range of normal average monthly temperatures between the coldest and warmest months is about 64° F. This large annual range attests to the continental nature of this MLRA's climate. Winds average about 11 miles per hour annually, ranging from about 13 miles per hour during the spring to about 10 miles per hour during the summer. Daytime winds are generally stronger than nighttime and occasional strong storms may bring brief periods of high winds with gusts to more than 50 miles per hour.

Growth of native cool-season plants begins in late March and continues to early to mid July. Native warm-season plants begin growth in mid May and continue to the end of August. Green up of cool-season plants can occur in September and October when adequate soil moisture is present.

Table 3. Representative climatic features

Climate stations used

• (1) BUTTE 5SE [USC00321225], Butte, ND

• (2) CARRINGTON [USC00321360], Carrington, ND

• (3) FORMAN 5 SSE [USC00323117], Forman, ND

• (4) HARVEY 4NE [USC00324013], Harvey, ND

• (5) LA MOURE [USC00324937], Lamoure, ND

• (6) MELLETTE 4 W [USC00395456], Northville, SD

• (7) PETERSBURG 2 N [USC00327027], Petersburg, ND

• (8) COLUMBIA 8 N [USC00391873], Columbia, SD

Influencing water features

This site does not receive significant additional water during the growing season, either as runoff from adjacent slopes or from a seasonal high water table. Depth to the water table is deeper than 3 feet during April through June. From July through October it is deeper than 4 feet (typically deeper than 5 feet). Surface infiltration ranges from very slow to moderate; permeability through the profile is very slow to moderately slow. Water loss on this site occurs through transpiration and/or percolation below the root zone.

Soil features

Soils associated with the Clayey ecological site are in the Mollisol & Vertisol orders. The Mollisols are classified further as Glossic Natrudolls, Pachic Argiudolls, Pachic Vertic Argiudolls, and Vertic Argiudolls. The Vertisols are classified further as Chromic Hapluderts and Typic Hapluderts. These soils were developed under prairie vegetation. They formed in glaciolacustrine sediments, in fine-loamy or clayey till, fine-silty loess over till, or in colluvium from weathered shale or shaly till. The soils on this site are deep or very deep. They are well drained or moderately well drained; redoximorphic features, where present, are below a depth of 3 feet. The common feature of soils in this site is a fine-textured subsoil (forms a ribbon >2 inches long), but it is not so dense as to be root restrictive. Typically, the subsoil is silty clay or clay, but clay loam or silty clay loam textures with >35% clay also occur. The surface layer is 7 to 18 inches thick. Most commonly the surface texture is loam, silt loam, clay loam, or silty clay loam; but silty clay and clay textures are included.

Soil salinity is none to very slight (E.C. <4 dS/m) in the upper 20 inches and none to slight (E.C. <8 dS/m) between 20 and 40 inches; below this it may increase to moderate (E.C. 8 - <16 dS/m). Sodicity is low (SAR <5) above the clayey subsoil; however, in many soils (particularly Glossic Natrudolls) it increases to moderate in the upper part of the subsoil and SAR values may exceed 13 in the lower subsoil and substratum.

Soil reaction typically is slightly acid to slightly alkaline (pH 6.1 to 7.8) above the clayey subsoil and slightly or moderately alkaline (pH 7.4 to 8.4) in the subsoil and substratum; in layers with high SAR values, reaction may be strongly alkaline (pH 8.5 to 9.0). Calcium carbonate content is none to moderately low to a depth of 16 inches or more; below this it may increase to as much as 25 percent.

Sub-surface soil layers are non-restrictive to water movement and root penetration. These soils are susceptible to water and wind erosion. The hazard of water erosion increases on slopes greater than about 5 percent.

Major soil series correlated to the Clayey site are: Aberdeen, Cresbard, Gwinner, Harmony, Nutley, Peever and Sinai.

Access Web Soil Survey ( https://websoilsurvey.sc.egov.usda.gov/App/WebSoilSurvey.aspx ) for specific local soils information.

Table 4. Representative soil features

Animal community

Animal Community – Wildlife Interpretations

Landscape

The MLRA 55B landscape is characterized by mostly nearly level to gently rolling till plains with some steep slopes adjacent to streams and many poorly defined drainage channels. The continental drainage divide occurs in the east central part of the MLRA. The MLRA is located within the Prairie Pothole Region with temporary, seasonal, and semi-permanent wetlands throughout the MLRA. The MLRA includes areas of eskers, kames, and ground moraines. MLRA 55B is considered to have a continental climate with cold winters and hot summers, low humidity, light rainfall, and much sunshine. Extremes in temperature are common and characteristic of the MLRA. This area supports mid- to tall-grass prairie vegetation with American elm, bur oak, green ash, and willow species growing along the riparian zones of river systems found throughout the MLRA. Complex intermingled ecological sites create diverse grass/shrub land habitats interspersed with varying densities of linear, slope, depressional, and in-stream wetlands associated with headwater streams and tributaries of the James, Pipestem, Maple, Goose, Sheyenne, Wild Rice, and Elm Rivers. MLRA 55B is located within North and South Dakota and within the boundaries of the Prairie Pothole Region.

Three Hydrologic Unit Areas make up this MLRA. Approximately 6% drains into the Mouse River into MLRA 55A, with the balance split between the James and Sheyenne Rivers.

By the mid-19th century, over 76% of the MLRA had been converted from mid- to tall-grass prairie to annual crop production. To alleviate crop production loss from wetlands and overland flow, a system of shallow surface ditches, judicial ditches, and road ditches removes surface water in spring and during high rainfall events. Tile drainage systems have been or are being installed extensively throughout MLRA 55B for sub-surface field drainage to enhance annual crop production.

Historic Communities/Conditions within MLRA 55B:

The northern tall- and mixed-grass prairie were disturbance-driven ecosystems with fire, herbivory, and climate functions as the primary ecological drivers (either singly or often in combination). American bison roamed MLRA 55B, wintering along the Mouse River in MLRA 55A and migrating through MLRA 55B and into MLRA 56A. Many species of grassland birds, small mammals, insects, reptiles, amphibians, elk, moose, pronghorn, white-tailed deer, and large herds of American bison were historically among the inhabitants adapted to this region. Roaming herbivores, as well as several small mammals and insect species, were the primary consumers linking the grassland resources to large predators (such as the wolf, American black bear, grizzly bear) and smaller carnivores (such as the coyote, bobcat, red fox, and raptors). Extirpated species include free- ranging American bison and gray wolf (breeding). Extinct is the Rocky Mountain locust.

Present Communities/Conditions within MLRA 55B:

This area supports natural prairie vegetation characterized by western wheatgrass, green needlegrass, needle and thread, and blue grama. Little bluestem is an important species on the more sloping and shallower soils. Prairie cordgrass, northern reedgrass, big bluestem, and wheat sedge (aka slough sedge) are important species on wet soils. Western snowberry, leadplant, and prairie rose are commonly interspersed throughout the area.

Over 80% of MLRA 55B has been converted to annual crop production. These influences fragmented the landscape, reduced or eliminated ecological drivers (fire), and introduced exotic plant species including smooth brome, crested wheatgrass, Kentucky bluegrass, and leafy spurge; this further impacted plant and animal communities. The loss of the bison and fire as primary ecological drivers greatly influenced the character of the remaining native plant communities and the associated wildlife, moving towards a less diverse and more homogeneous landscape. Annual cropping is the main factor contributing to habitat fragmentation, reducing habitat quality for area- sensitive species.

Hydrological manipulation is extensive throughout the MLRA. Extensive wetland and subsurface tile drainage have taken place. Straightened segments of ephemeral and intermittent tributary streams of the James, Wild Rice, and Sheyenne River have reduced sinuosity, created oxbows, and enabled the conversion of riparian ecological sites to annual crop production. These anthropogenic impacts have reduced flood water detention and retention on the landscape. The results have been increasing storm water runoff sediment and nutrient loading to the James and Sheyenne Rivers and their tributaries (along with lakes and reservoirs within the MLRA). Large dams on the James, Pipestem and Sheyenne rivers, along with installation of instream structures have reduced aquatic species movement within the MLRA.

National wildlife refuges, waterfowl production areas, state wildlife management areas, and North and South Dakota Department of Trust Lands provide herbaceous and woody cover for wildlife. In addition, the United States Army Corps of Engineers and the United States Bureau of Reclamation manage three man-made reservoirs - Jamestown Reservoir, Pipestem Reservoir, and Lake Ashtabula for flood control, also providing fish habitat and adjacent uplands for wildlife cover. Lonetree Wildlife Management Area (WMA) is the largest state managed wildlife area covering 32,800 acres. Arrowwood National Wildlife Refuge is the largest refuge consisting of 16,000 acres.

Characteristic wildlife species in this area are:

Birds: Common goldeye, bufflehead, broad-winged hawk, alder flycatcher, mourning warbler, mallard, blue-winged teal, red-tailed hawk, American kestrel, killdeer, eastern and western kingbird, western meadowlark, American crow, common yellowthroat, clay-colored sparrow, vesper sparrow, red-necked grebe, Savannah sparrow, downy and hairy woodpeckers, black-capped chickadee, white-breasted nuthatch, and brown-headed cowbird.

Mammals: Northern short-tailed shrew, white-tailed jackrabbit, Franklin’s ground squirrel, thirteen- lined ground squirrel, northern pocket gopher, plains pocket gopher, western harvest mouse, deer mouse, meadow vole, meadow jumping mouse, western jumping mouse, coyote, red fox, racoon, American badger, striped skunk, white-tailed deer, elk, moose, beaver, muskrat, mink, weasel, woodchuck, and red, eastern gray and fox squirrels.

Reptiles/Amphibians: American toad, Great Plains toad, northern leopard frog, chorus frog, tiger salamander, plains garter snake, smooth green snake, wood frog, and common garter snake.

Presence of wildlife species is often determined by ecological site characteristics including grass and forb species, tree and shrub species, hydrology, aspect, and other associated ecological sites. The home ranges of a majority of species are usually larger than one ecological site or are dependent upon more than one ecological site for annual life requisites. Ecological sites offer different habitat elements as the annual life requisites change. Habitat improvement and creation must be conducted within the mobility limits of a known population for the species.

Insects play an important role in providing ecological services for plant community development. Insects that are scavengers or aid in decomposition provide the food chain baseline sustaining the carnivorous insects feeding upon them. Many insects provide the ecological services necessary for pollination, keeping plant communities healthy and productive. Insects provide a protein food source for numerous species including grassland-nesting birds, woodpeckers, woodland edge and interior species, and their young. Extensive use of insecticides for specialty crops (such as soybeans, corn, and other crops) has greatly reduced insects within this MLRA.

Species of Concern within MLRA 55B:

The following is a list of species considered “species of conservation priority” in the North Dakota State Wildlife Action Plan (2015) and South Dakota State Wildlife Action Plan (2014); and species listed as “threatened, endangered, or petitioned” under the Endangered Species Act within MLRA 55B at the time this section was developed:

Invertebrates: Dakota skipper, Iowa skipper, monarch butterfly, northern sandy tiger beetle, Ottoe skipper, Poweshiek skipperling, regal fritillary, yellow-banded bumble bee, and western bumble bee.

Birds: America avocet, American bittern, American kestrel, American white pelican, Baird’s sparrow, bald eagle, black-billed cuckoo, black tern, bobolink, burrowing owl, canvasback, chestnut-collared longspur, Dickcissel, ferruginous hawk, Franklin’s gull, grasshopper sparrow, horned grebe, lark bunting, LeConte’s sparrow, lesser scaup, marbled godwit, Nelson’s sparrow, northern goshawk, northern harrier, northern pintail, osprey (migration), peregrine falcon (migration), piping plover (migration), red knot (migration), sharp-tailed grouse, short-eared owl, Swainson’s hawk, upland sandpiper, western meadowlark, willet, Wilson’s phalarope, whooping crane (migration), and yellow rail.

Mammals: Arctic shrew, big and little brown bats, Franklin’s ground squirrel, northern river otter, plains pocket mouse, pygmy shrew, Richardson’s ground squirrel, and silver-haired bat.

Amphibians and Reptiles: Canadian toad, plains hognose snake, smooth green snake, and snapping turtle.

Fish and Mussels: Black sandshell, blacknose shiner, Carmine shiner, creek heelsplitter, creeper, deertoe, fragile papershell, mapleleaf, northern pearl dace, northern redbelly dace, pink heelsplitter, threeridge, trout-perch, yellow sandshell, and Wabash pigtoe.

Grassland Management for Wildlife in MLRA 55B

Management activities within the community phase pathways impact wildlife but are essential for maintenance of healthy grassland ecosystems. Community phase, transitional, and restoration pathways are keys to long-term management within each State and between States. Timing, intensity, and frequency of these inputs can have dramatic positive or negative effects on local wildlife species. Ranchers and other land managers must always consider the long-term beneficial management effects of grassland and woodland resources in comparison to typically short-term negative effects to the habitats of individual species.

Ecological sites occur as intermingled complexes on the landscape with gradual or sometimes abrupt transitions. Rarely do ecological sites exist in large enough acreage to manage independently. Ecological sites supporting a dominance of herbaceous vegetation (Loamy/Sandy) can be located adjacent to ecological sites that support medium to tall shrubs (Invaded Wooded States). Conversely, ecological sites that are dominated by short- to mid-statured grasses (Claypan) can be adjacent to sites with bare soil only supporting a minor amount of short grasses and forbs (Thin Claypan).

Management of these complex ecological sites can provide a heterogeneous or a homogenous landscape. Grassland bird use declines as the plant community transitions to a homogenous state. Managers must recognize ecological sites and the complexes in which they occur to properly manage the landscape. A management regime for one ecological site may negatively impact an adjacent site; for example, alteration of a grazing regime within the Invaded Wooded State of ecological sites to encourage understory growth may encourage exotic cool-season grasses to increase or dominate an adjacent ecological site.

Life requisites and habitat deficiencies are determined for targeted species. Deficiencies need to be addressed along community phase, transitional, and restoration pathways as presented in specific state-and-transition models. Ecological sites should be managed and restored within the site’s capabilities to provide sustainable habitat for targeted species or species guilds. Managers also need to consider vegetative associations provided by adjacent/intermingled ecological sites for species with home ranges or life requisites that may not be provided by one ecological site.

Grassland-nesting birds use various grass heights for breeding, nesting, foraging, or winter habitat. While most species use varying heights, many have a preferred vegetative stature height or sensitivity to woody vegetation. Understanding the sensitivity of grassland species to woody vegetation and preferred vegetative structure enables managers to determine which grassland-nesting bird species avoid grassland habitats adjacent to woody dominated plant community phases or states. The following chart provides sensitivity to woody vegetation and preferred vegetative stature heights.

To see the chart please follow the hyperlink
https://efotg.sc.egov.usda.gov/references/public/ND/55B_Clayey_Narrative_FINAL_Ref_FSG.pdf

Clayey Wildlife Habitat Interpretation:

Clayey ecological sites have no restrictions in the upper 20 inches of the soil profile. This complex of ecological sites provides habitat for many edge-sensitive, grassland bird species. Clayey habitat features support nesting and foraging grassland birds but may be too dense and tall for sharp-tailed grouse leks. Associated ecological sites include Claypan, Limy Subirrigated, Loamy, Loamy Overflow, Thin Loamy, and Wet Meadow.

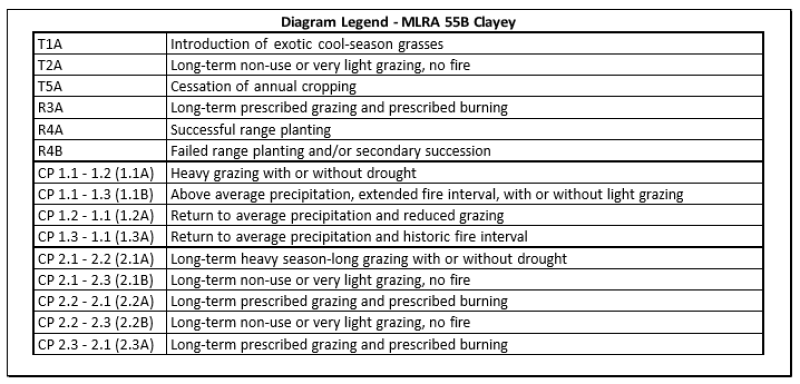

Clayey ecological sites may be found in four plant community states (1.0 Reference State, 2.0 Native/Invaded State, 3.0 Invaded State, and 4.0 Go-Back State). Multiple plant community phases exist within states 1 and 2. These states occur primarily in response to grazing, drought, and non- use. Secondary influences include fire and anthropogenic disturbances.

Because there is no known restoration pathway from 2.0 Native/Invaded State to 1.0 Reference State, it is important to intensively manage using tools within these state’s community phase pathways to prevent further plant community degradation along the T2 transitional pathway to 3.0 Invaded State. Native grassland associated wildlife generally benefit from a heterogeneous grassland (as found in community phases of States 1.0 and 2.0) that includes diverse grass and forb species with varying structure and density.

As plant communities degrade within State 2.0 and transition to State 3.0, cool-season exotic grasses increase while native forbs are reduced. This transition results in reduced structure, increased plant community homogeneity, and reduced insect populations which reduces breeding, nesting, foraging, or winter habitat for grassland birds. When adjacent/intermingled, ecological sites undergo the same transition, the result can be an expansive, homogenous landscape. A homogenous grassland landscape does not provide quality escape or winter cover. As a result, many species may not be able to meet life requisites within State 3.0.

Success along restoration pathway R3A from State 3.0 to State 2.0 is very difficult and is dependent upon presence of a remnant native grass population or successful native range planting.

Management along community phase, transition or restoration pathways should focus upon attainable changes. Short- and long-term monetary costs must be evaluated against short- and long- term ecological services in creating and maintaining habitat of enough quality to support a sustainable population.

1.0 Reference State

Community Phase 1.1 Green Needlegrass-Western Wheatgrass: This plant community offers excellent wildlife habitat and every effort should be made to maintain this ecological site within this community phase. This phase retains high functionality through continued maintenance including prescribed grazing with adequate recovery period as well as prescribed fire. Predominance of grass species in this community favors grazers and mixed-feeders (animals selecting grasses as well as forbs and shrubs). The structural diversity provides habitat for a wide array of migratory and resident birds.

Invertebrates: Insects play a role in maintaining the forb community and provide a forage base for grassland birds, reptiles, and rodents. Ecological services, historically provided by bison, are simulated by domestic livestock. These services include putting plant material and dung in contact with mineral soil to be used by low trophic level consumers (such as invertebrate decomposers, scavengers, shredders, predators, herbivores, dung beetles, and fungal-feeders).

Dakota skippers do not prefer this site due to limited host plants, such as little bluestem and prairie dropseed. Regal fritillary habitat is limited due to Nuttall's violet and prairie violets being uncommon. Monarch butterfly may use flowering forbs on this site; however, few milkweed species are found on this site to support breeding and larvae development. The ecological site does not provide habitat for the northern sandy tiger beetle which prefers dry, sandy dunes and sandy areas away from water. This plant community does not provide habitat for the Ottoe Skipper preferring mid-statured grasses containing little bluestem, prairie dropseed, and side-oats grama. Bumblebees and other native bees utilize forbs for pollen and nectar and bare ground for nesting amongst bunchgrasses. Prescribed grazing with adequate recovery periods, as well as prescribed fire, to maintain Community Phase 1.1 will have long term positive effects on ground dwelling insects.

Birds: This plant community provides quality nesting, foraging, and escape habitats favored by short- to mid-grass nesting birds. Plant structure may be too dense or tall for species using short-grass habitats; however, it may be used during periods of drought or management such as rotational grazing or fire (resulting in defoliation) along community phase pathway 1.1A. The low scattered shrubs present in the plant community phase should not impact woody vegetation sensitive bird species.

Grassland birds preferring short- to mid-grass structure will use this site. In years with reduced precipitation or drought, nesting recruitment may be compromised. This plant community provides suitable areas for sharp-tailed grouse leks and nesting and brood-rearing habitat. Limited structure and diverse prey populations provide good hunting opportunity for grassland raptors. Many passerine species utilize MLRA 55B as a major migratory travel corridor.

Mammals: The diversity of grasses and forbs provide high nutrition levels for small and large herbivores including voles, mice, rodents, jackrabbits, and white-tailed deer. Short to moderate stature provides suitable food and thermal, protective, and escape cover for small herbivores such as ground squirrels.

Amphibians/Reptiles: This ecological site and associated plant communities provides habitat for smooth green snakes. This ecological site can provide habitat for the northern leopard frog and Great Plains toad if freshwater habitats (such as wetlands, streams, or lakes) are adjacent to the site.

Fish and Mussels: This ecological site is not directly associated with streams, rivers, or water bodies. This ecological site may receive run-on hydrology from adjacent ecological sites and it provides hydrology to downslope ecological sites such as Limy Subirrigated. Management on Clayey sites, in conjunction with neighboring run-on sites, will have a indirect effect on aquatic species in streams and/or tributaries receiving water from Clayey and adjacent sites. Optimum hydrological function and nutrient cycling limit potential for sediment yield and nutrient loading to the nearby aquatic ecosystems from Community Phase 1.1.

Community Phase 1.2: Blue Grama-Western Wheatgrass/Sedges/Prairie Sagewort: This plant community phase occurs from events that favor a decrease of cool-season grasses and an increase in warm-season grasses, such as a combination of heavy grazing and prolonged periods of drought.

Invertebrates: An increase in warm-season, turf-forming grasses may negatively impact ground nesting pollinator species by reducing nesting site availability. Heavy grazing and drought reduce nectar and pollen availability for many pollinators.

Birds: An increase of short, warm-season grasses favors grassland-nesting birds species preferring short to mid-statured vegetation. Short, warm-season grasses may be more attractive for lek sharp- tailed grouse sites.

Mammals: Shorter statured vegetation reduces thermal, protective, and escape cover for large ungulates.

Amphibians and Reptiles: Provides similar life requisites as Community Phase 1.1.

Fish and Mussels: Provides similar life requisites as Community Phase 1.1.

Community Phase 1.3 Western Wheatgrass/Western Snowberry: With above average precipitation and a reduction in fire frequency (with or without light grazing), native shrubs (such as western snowberry) become prominent and begin to dominate. Western wheatgrass increases as native cool- season bunch grasses, such as green needlegrass, decrease. Leadplant and wild rose may also increase across the entire site. Increased burn intervals and average precipitation, via Community Phase Pathway 1.3A, can return this plant community phase back to Community Phase 1.1.

Invertebrates: Provides similar life requisites as Community Phase 1.1. However, increased shrub component will provide early- and mid- season nectar and pollen sources for pollinating insects. Dependent on the number of forbs still present, late season pollen and nectar may not be available. These woody species are not considered nectar sources for regal fritillary or monarch butterfly.

Birds: Western snowberry-dominated sites provide nesting, brood, and winter cover for sharp-tailed grouse and ring-necked pheasant. Dependent upon the density of western snowberry, grassland nesting birds intolerant of woody vegetation may not use this site. Western snowberry provides winter cover and food (berries) for grassland-nesting bird species that use woody vegetation (or can tolerate a small amount) within areas dominated by grassland habitat. Without taller shrubs and trees, woody vegetation will not reach needed density to provide habitat for woodland edge species but may reach sufficient density for grassland nesting birds sensitive to woody vegetation to avoid this site. Brown-headed cowbird use will increase with an increase in the woody cover component of this ecological site.

Mammals: Increase in woody habitat provides winter and escape cover, birthing sites, browse, etc. for white-tailed deer. The increase in woody cover will not benefit bat species found in MLRA 55B, since necessary maternity trees are limited to non-existent.

Amphibians and Reptiles: Provides similar life requisites as Community Phase 1.1; however, the increase in woody vegetation will decrease habitat quality for the smooth green snake.

Fish and Mussels: Provides similar life requisites as Community Phase 1.1.

2.0 Native/Invaded State

Community Phase 2.1 Green needlegrass-Western Wheatgrass: This plant community develops through Transition Pathway T1 due to changes in management and the presence of exotic, cool-season grasses. Chronic season-long or late fall grazing can facilitate this transition. Complete rest from grazing and no fire events can also lead to this transition. The threshold between States 1.0 and 2.0 is crossed when Kentucky bluegrass, smooth brome grass, or other exotic species become established. This plant community phase has a very similar appearance and function to the Reference State of Community 1.1, except it has a minor amount of cool-season exotic grasses and forbs. This phase functions at a high level for native wildlife; therefore, managers should consider the 2.0 community phase pathways to avoid transitioning to the Invaded State 3.0. There is no known Community Phase Pathway back to State 1.0 from State 2.0.

Invertebrates: Provides similar life requisites as Community Phase 1.1.

Birds: Provides similar life requisites as Community Phase 1.1.

Mammals: Provides similar life requisites as Community Phase 1.1.

Amphibians and Reptiles: Provides similar life requisites as Community Phase 1.1.

Community Phase 2.2 Blue Grama-Western Wheatgrass/Sedges/Prairie Sagewort:
This community developed under extended, heavy season-long grazing, with or without drought. Community Phase Pathway 2.1A leads to shorter-statured warm-season grasses and a reduction in forb diversity. Dominated by shorter-stature grasses and a loss of nitrogen-fixing or leguminous native forbs, the diversity of this plant community is reduced. Prescribed grazing with adequate recovery periods along Community Phase Pathway 2.2A is an efficient, effective method to regain the cool-season grass and forb diversity components in Community Phase 2.1.

Invertebrates: The reduction of native forbs and increase in sod-forming grasses begins to limit foraging and nesting sites for all pollinators. Early-season bloom species become limited. Continuous, season-long grazing or heavy continuous grazing may reduce ground-nesting site availability. Homogeneity of forb species may limit season-long nectar availability.

Birds: Extended, heavy season-long grazing reduced nesting sites, forage (invertebrates), and cover. A reduced forb component may limit insect foraging opportunities. The stature is generally short, serving both short- and mid- grass nesting birds. Shortgrass-nesting birds favor this phase. Species that prefer mid-grass stature generally will be successful with normal to above normal precipitation and a change in management (implementation of a prescribed grazing system, along the 2.2A Community Pathway). In years with reduced precipitation or heavy grazing during the nesting season, use by mid-grass nesting species may be compromised. This plant community provides areas suitable for sharp-tailed grouse lek site development. Heavy grazing and a lack of cover for small mammals reduces hunting opportunities for grassland raptors.

Mammals: Suitable food, thermal, protective, and escape cover (reduction in litter) for most mammals become limited. The loss of diversity of grasses and forbs reduces nutrition levels for small and large herbivores including voles, mice, rodents, jackrabbits, and white-tailed deer.

Amphibians and Reptiles: Provides similar life requisites as Community Phase 1.1.

Fish and Mussels: Provides similar life requisites as Community Phase 1.1.

Community Phase 2.3 Western Wheatgrass/Western Snowberry: Multiple years of non-use (via Community Pathway 2.1B) allows Kentucky bluegrass to increase. Runoff and available nitrogen increase.

Invertebrates: The increase in sod-forming Kentucky bluegrass limits forb production and further limits nesting sites for pollinators.

Birds: Total rest provides vegetation that is short- to mid-stature. Depending on the degree of Kentucky bluegrass invasion, the lack of plant diversity and stature along with increased litter and the tendency of Kentucky bluegrass and smooth brome cover to prostrate or “flop”, limits use by many grassland-nesting birds. This plant community provides areas suitable for sharp-tailed grouse lek site development. Limited stature and limited prey populations in the continuous season-long community phase limits small mammal populations reducing hunting opportunities for grassland raptors. Non- use or lack of fire provides protective and thermal cover for small mammals and good hunting opportunities for grassland raptors.

Mammals: The increased litter from total rest from grazing combined with no fire events provides protective, thermal, and escape cover for small mammals but limited protective, thermal, or escape cover for large mammals.

Amphibians and Reptiles: Provides similar life requisites as Community Phase 1.1.

Fish and Mussels: Provides similar life requisites as Community Phase 1.1.

3.0 Invaded State

Community Phase 3.1 Exotic Cool-Season Grasses/Forbs: Community Phase Pathway T2A is characterized by extended periods of non-use or very light grazing, and no fire, when exotic cool-season grasses are present (as in Community Phase 2.3). This plant community phase is characterized by a dominance (>30%) of exotic cool-season grasses (such as Kentucky bluegrass, crested wheatgrass, and smooth brome). Restoration Pathway R3A requires remnant amounts of native warm- and cool-season grasses and forbs. The remnant native community requires frequent prescribed burns and high levels of grazing management targeting the exotic cool-season grasses to improve competitiveness and increase vigor and density. This plant community is very resistant to changes and without intensive management, the remnant native plants will not increase adequately to transition back to State 2.0. Intensified management along the R3A Pathway will have significant short-term negative impacts on wildlife habitat; however, this is necessary to restore long-term native habitat functions.

Invertebrates: Extended periods of non-use and elimination of fire reduces or eliminates forbs, limiting use by beneficial insects found in States 1.0 and 2.0. Increased litter and lack of grazing leads to limited contact between plant material and mineral soil resulting in a cooler micro-climate, which is unfavorable to most insects. Lack of bare soil limits ground-nesting sites for native bees and other ground-nesting insects. The lack of nectar-producing plants limits forage opportunities for bumblebees, regal fritillary, monarch butterfly, and other pollinating species.

Birds: This homogeneous community phase, dominated by exotic plant species, provides limited habitat and life requisites for most obligate grassland-nesting birds. Lack of stature and plant diversity, along with increased litter and the tendency of Kentucky bluegrass and smooth brome to lay down, limits use by many grassland-nesting birds. Litter accumulations reduce use by chestnut-collared and McCown’s longspurs. Sharp-tailed grouse leks can be found on this plant community; however, brood and winter cover must be provided by adjacent ecological sites or plant communities.

Mammals: Litter accumulation favors thermal, protective, and escape cover for small rodents. Thermal, protective, and escape cover becomes limit for larger ungulates.

Amphibians/Reptiles: Provides similar life requisites as Community Phase 1.1.

Fish and Mussels: Provides similar life requisites as Community Phase 1.1.

4.0 Go-Back State

Community Phase 4.1 Annual/Pioneer Perennial/Exotics: These plant communities are the result of severe soil disturbance (such as cropping, recreational activity, or concentrated livestock activity for a prolonged period). Following cessation of disturbances, the resulting plant community is dominated by early pioneer annual and perennial plant species. Plant species composition and production are highly variable. Weedy plants can provide pollinator habitat along with spring and summer cover for many mammals and birds, and their young. Dense weed cover can keep soils moist, increasing insect presence. Tall stature provided by some weeds, such as marsh elder and ragweed, offer thermal cover and seeds throughout winter.

Successful restoration of native species along Transition Pathway R4A results in a native grass and forb community in State 2.0. Failed restoration to native species through Restoration Pathway R4B results in Invaded State 3.0. Wildlife species response will be dependent upon plant community composition, vegetative stature, patch size, and management activities (such as prescribed grazing, burning, interseeding, haying, or noxious weed control).

Animal Community – Grazing Interpretations

This site is well adapted to managed grazing by domestic livestock. The predominance of herbaceous plants across all plant community phases best lends these sites to grazing by cattle, but other domestic grazers with differing diet preferences may also be a consideration depending upon management objectives. Often, the current plant community does not match any particular plant community (as described in the ecological site description). Because of this, a resource inventory is necessary to document plant composition and production. Proper interpretation of this inventory data will permit the establishment of a safe, initial stocking rate for the type and class of animals and level of grazing management. More accurate stocking rate estimates should eventually be calculated using actual stocking rate information and monitoring data.

NRCS defines prescribed grazing as “managing the harvest of vegetation with grazing and/or browsing animals with the intent to achieve specific ecological, economic, and management objectives”. As used in this site description, the term ‘prescribed grazing’ is intended to include multiple grazing management systems (e.g., rotational grazing, twice-over grazing, conservation grazing, targeted grazing, etc.) provided that, whatever management system is implemented, it meets the intent of prescribed grazing definition.

The basic grazing prescription addresses balancing forage demand (quality and quantity) with available forage, varying grazing and deferment periods from year-to-year, matching recovery/deferment periods to growing conditions when pastures are grazed more than once in a growing season, implementation of a contingency (e.g., drought) plan, and a monitoring plan. When the management goal is to facilitate change from one plant community phase or state to another, then the prescription needs to be designed to shift the competitive advantage to favor the native grass and forb species.

Grazing levels are noted within the plant community narratives and pathways in reference to grazing/prescribed grazing management. “Degree of utilization” is defined as the proportion of the current years forage production that is consumed and/or destroyed by grazing animals (may refer to a single plant species or a portion or all the vegetation). “Grazing utilization” is classified as slight, moderate, full, close, and severe (see the following table for description of each grazing use category). The following utilization levels are also described in the Ranchers Guide to Grassland Management IV. Utilization levels are determined by using the landscape appearance method as outlined in the Interagency Technical Reference “Utilization Studies and Residual Measurements” 1734-3.

Utilization Level % Use Description Slight (Light) 0-20
Appears practically undisturbed when viewed obliquely. Only choice areas and forage utilized.

Moderate 20-40 Almost all of accessible range shows grazing. Little or no use of poor forage. Little evidence of trailing to grazing.

Full 40-60 All fully accessible areas are grazed. The major sites have key forage species properly utilized (about half taken, half left). Points of concentration with
overuse limited to 5 to 10 percent of accessible area.

Close (Heavy) 60-80 All accessible range plainly shows use and major sections closely cropped. Livestock forced to use less desirable forage, considering seasonal preference.

Severe > 80 Key forage species completely used. Low-value forages are dominant.

Hydrological functions

Water is the principal factor limiting forage production on this site. This site is dominated by soils in hydrologic group C. Infiltration varies from very slow to moderately slow; runoff potential for this site varies from medium to very high depending upon surface texture, slope and ground cover. In many cases, areas with greater than 75% ground cover have the greatest potential for high infiltration and lower runoff. An example of an exception would be where shortgrasses form a strong sod and dominate the site. Dominance by blue grama, Kentucky bluegrass, and/or smooth brome will result in reduced infiltration and increased runoff. Areas where ground cover is less than 50% have the greatest potential to have reduced infiltration and higher runoff (refer to Section 4, NRCS National Engineering Handbook for runoff quantities and hydrologic curves).

Recreational uses

Hunting and Bird Watching: National wildlife refuges, waterfowl production areas, state wildlife management areas (WMA), and North Dakota and South Dakota Department of Trust Lands provide herbaceous and woody cover for wildlife. National Wildlife Refuges and waterfowl production areas are owned and managed by the United States Fish and Wildlife Service and are available for public hunting, hiking, and bird watching. In addition, the United States Army Corps of Engineers and the United States Bureau of Reclamation manage three man-made reservoirs - Jamestown Reservoir (2,036 acres), Pipestem Reservoir (1,027 acres), and Lake Ashtabula (5,174 acres) for flood control, also providing fish habitat and adjacent uplands for wildlife cover. Lonetree WMA is the largest state managed wildlife area covering 32,800 acres. Numerous WMAs in North Dakota and Game Production Areas in South Dakota are found within this MLRA. The largest refuges managed by the United States Fish and Wildlife service are Arrowwood National Wildlife Refuge (NWR) Complex consists of 75,000 acres and Tewaukon National NWR covers 8,363 acres.

Fishing: Approximately 100 lakes are managed for public fishing within MLRA 55B. Most of these lakes offer boat docks and ramps. These lakes contain various sport fish including walleye, northern pike, yellow perch, catfish, trout, crappie, and bluegill. Many of these lakes are known for excellent round-around walleye and yellow perch fishery.

Camping: Fort Ramson State Park, Pipestem Reservoir, Jamestown Reservoir, Spiritwood Lake, Clausen Springs, Little Yellowstone, Richmond Lake State Recreation Area, Mina Lake State Recreation Area, and other public and private campgrounds are found within the MLRA. Limited, primitive camping is available on wildlife management areas. Ft. Ransom State Park (North Dakota), located along the Sheyenne River has a designated horse park with 15 miles of trails.

Hiking/Biking/Horseback Riding: Horseback riders, hikers, and biker can enjoy over 15 miles of multi-use trails at Fort Ransom State Park. The Jamestown Reservoir (5 miles), Pipestem Reservoir (8 miles) and Arrowwood National Wildlife Refuge (9.4 miles) maintain hiking trails. The Lonetree Wildlife Management Area has a 32- mile segment of the North Country Trail. It is designed for hiking and non-motorized travel including mountain bikes or horseback riding.

Canoeing/Kayaking: The Sheyenne River offers 278 miles of canoeing/kayaking from May-July. A kayak kiosk is located at Valley City and canoe/kayak rentals are available at Fort Ransom State Park. The James River has a canoe trail starting in Grand Rapids and canoeing down to the James River Dam site in LaMoure; no rentals are available.

Auto Tour: A 63-mile scenic drive starts north of Valley City and heading south through Sheyenne River Valley. Audubon National Wildlife Refuge offers a 5.5-mile auto-tour route winding through both prairie grassland and wetland habitats of the lower portion of the James River Valley.

Wood products

There are no significant wood products found on this site.

Other products

Seed harvest of native plant species can provide additional income on this site.

Other information

Site Development and Testing Plan
• Further investigation is needed on site hydrology and soil chemistry where this site is in complex with Limy Subirrigated, Thin Claypan, or Wet Meadow sites. These sites all have higher water tables than the Clayey site. In addition, the soils assigned to the Clayey site in these complexes are Natrudolls which have a risk of increasing soil salinity and SAR values in the subsoil. Site to site interactions need further study in the following MLRA map units:
- Fargo-Aberdeen complex, 0 to 2 percent slopes (map unit 2q5nj)
- Hamerly-Cresbard loams, 0 to 3 percent slopes (map unit 2q4nv)
- Aberdeen-Exline silt loams, 0 to 2 percent slopes (map unit 2q5nb)

• Further evaluation and refinement of the State-and-Transition model is needed to identify disturbance driven dynamics. Additional states and/or phases may be required to address grazing response.

• Further documentation may be needed for plant communities in all states. Plant data has been collected in previous range-site investigations, including clipping data; however, this data needs review. If geo-referenced sites meeting Tier 3 standards for either vegetative or soil data are not available, representative sites will be selected for further investigation.

• Site concepts will be refined as the above noted investigations are completed.

• The long-term goal is to complete an approved, correlated Ecological Site Description as defined by the National Ecological Site Handbook.

• NASIS revisions needed:
-There is one major component of Fargo taxadjunct (sandy substratum, somewhat poorly drained) which is currently linked to Clayey; this should be relinked to Subirrigated.


This ESD is the best available knowledge. The site concept and species composition table have been used in the field and tested for more than five years. It is expected that as additional information becomes available revisions may be required.

Inventory data references

Information presented here has been derived from NRCS and other federal/state agency clipping and inventory data. Also, field knowledge of range-trained personnel was used. All descriptions were peer reviewed and/or field-tested by various private, state, and federal agency specialists.

Other references

Bakker, K.K. 2003. The effect of woody vegetation on grassland nesting birds: an annotated bibliography. The Proceedings of the South Dakota Academy of Science 82:119-141.

Barker, W.T. and W. C. Whitman. 1988. Vegetation of the Northern Great Plains. Rangelands 10(6): 266-272. Bluemle. J.P. 2016. North Dakota’s geologic legacy. North Dakota State University Press. 382 pages.

Briske, D.D. (editor). 2017. Rangeland systems – processes, management, and challenges. Springer Series on Environmental Management. 661 pages.

Burgess, R.L. 1965. A study of plant succession in the sandhills of southeastern North Dakota. Proceedings ND Academy of Science 19:62-80

DeKeyser, E.S., G. Clambey, K. Krabbenhoft, and J. Ostendorf. 2009. Are changes in species composition on central North Dakota rangelands due to non-use management? Rangelands 31:16-19

Dix, R.L. and F.E. Smeins. 1967. The prairie, meadow, and marsh vegetation of Nelson County, North Dakota. Canadian Journal of Botany 45:21-57.

Dornbusch, M.J., R.F. Limb, and C.K. Gasch. 2018. Facilitation of an exotic grass through nitrogen enrichment by an exotic legume. Rangeland Ecology & Management 71:691-694.

Dyke, S.R., S.K. Johnson, and P.T. Isakson. 2015. North Dakota state wildlife action plan. North Dakota Game and Fish Department, Bismarck, ND. 468 pages.

Ehrenfeld, Joan G. 2002. Effects of exotic plant invasions on soil nutrient cycling processes. Ecosystems 6:503-523.

Endangered and threatened wildlife and plants; designation of critical habitat for the Dakota skipper and Poweshiek skipperling; Vol. 79 No. Final Rule October 1, 2015, 50 CFR Part 17.

Ereth, C., J. Hendrickson, D. Kirby, E. DeKeyser, K. Sedevic, and M. West. Controlling Kentucky bluegrass with herbicide and burning is influenced by invasion level. Invasive Plant Science and Management 10: 80-89.

Ewing, J. 1924. Plant succession on the brush prairie in northwestern Minnesota. Journal of Ecology 12:228- 266.

Gilgert, W.; and S. Zack. 2010. Integrating multiple ecosystem services introduction ecological site descriptions. Rangelands: 32:49-54.

Grant, T.A. and R.K. Murphy. 2005. Changes on woodland cover on prairie refuges in North Dakota, USA. Natural Areas Journal 25:359-368.

Heitschmidt, R. K., K. D. Klement, and M. R. Haferkamp. 2005. Interactive effects of drought and grazing on Northern Great Plains rangelands. Rangeland Ecology and Management 58:11-19.

Hendrickson, J.R., P. S. Johnson, M. A. Liebig, K. K. Sedivec, and G. A. Halvorson. 2016. Use of ecological sites in managing wildlife and livestock: an example with prairie dogs. Rangelands

Hendrickson, J.R., S.L. Kronberg, and E.J. Scholljegerdes. 2020. Can targeted grazing reduce abundance of invasive perennial grass (Kentucky bluegrass) on native mixed-grass prairie? Rangeland Ecology and Management, 73:547-551.

Higgins, K.F. 1984. Lightning fires in grasslands in North Dakota and in pine-savanna lands in nearby South Dakota and Montana. J. Range Manage. 37:100-103.

Higgins, K.F. 1986. Interpretation and compendium of historical fire accounts in the Northern Great Plains. United States Department of Interior, Fish and Wildlife Service. Resource Publication 161. 39 pages.

Higgins, K.F., A.D. Kruse, and J.L. Piehl. 1989. Effects of fire in the Northern Great Plains. U.S. Fish and Wildlife Service and Cooperative Extension Service South, Dakota State University. Extension Circular 761. 48 pages.

High Plains Regional Climate Center, University of Nebraska, 830728 Chase Hall, Lincoln, NE 68583-0728. (http://hprcc.unl.edu)

Johnson, Sandra. 2015. Reptiles and amphibians of North Dakota. North Dakota Game and Fish Department. 64 pages.

Jordan, N. R., D.L. Larson, and S.C. Huerd. 2008. Soil modification by invasive plants: effects on native and invasive species of mixed-grass prairies. Biological Invasions 10:177-190.

Mader, E., M. Shepherd, M. Vaughan, and S.H. Black. 2011. Attracting native pollinators: protecting North America's bees and butterflies. Accessed at https://xerces.org, May 1, 2017.

North Dakota Division of Tourism, Accessed on February 25, 2019. Available at https://www.ndtourism.com/sports-recreation

North Dakota Parks and Recreation Department, Accessed on February 25, 2019. Available at http://www.parkrec.nd.gov/recreationareas/recreationareas.html

Palit, R., G. and E.S. DeKeyser. 2022. Impacts and drivers of smooth brome (Bromus inermis Leyes.) invasion in native ecosystems. Plants: 10,3390. http://https://www.mdpi.com/2223-7747/11/10/1340

Palit, R., G. Gramig, and E.S. DeKeyser. 2021. Kentucky bluegrass invasion in the Northern Great Plains and prospective management approaches to mitigate its spread. Plants: 10,817. https://doi.org/10.3390/plants10040817

Printz, J.L. and J.R. Hendrickson. 2015. Impacts of Kentucky bluegrass Invasion (Poa pratensis) on ecological processes in the Northern Great Plains. Rangelands 37(6):226-232.

Redmann, Robert E. 1975. Production ecology of grassland plant communities in western North Dakota. Ecological Monographs 45:83-106.

Reeves, J.L., J.D. Derner, M.A. Sanderson, J.R. Hendrickson, S.L. Kronberg, M.K. Petersen, and L.T. Vermeire. 2014. Seasonal weather influences on yearling beef steer production in C3-dominated Northern Great Plains rangeland. Agriculture, Ecosystems and Environment 183:110-117.

Royer, R. A., 2003. Butterflies of North Dakota: an atlas and guide. Minot State University, Minot, ND.

Seabloom, R. 2020. Mammals of North Dakota. North Dakota Institute for Regional Studies, Fargo, ND. 470 pages.

Sedivec, K.D., J.L. Printz. 2014. Ranchers guide to grassland management IV. NDSU Extension Service publication R1707.

Severson, K. E. and C. Hull Sieg. 2006. The nature of eastern North Dakota: Pre-1880 Historical Ecology. North Dakota Institute for Regional Studies.

South Dakota Dept. of Game, Fish and Parks. 2014. South Dakota wildlife action plan. Wildlife Division Report 2014-03.

Spaeth, K.E., Hayek, M.A., Toledo, D., and Hendrickson, J. 2019. Cool season grass impacts on native mixedgrass prairie species in the Norther Great Plains. America’s Grassland Conference: Working Across Boundaries. The Fifth Biennial Conference on the Conservation of America’s Grasslands. Bismarck, ND. 20- 22 August.

Tidwell, D., D.T. Fogarty, and J.R. Weir. 2021. Woody encroachment in grasslands, a guide for understanding risk and vulnerability. Oklahoma State University, Oklahoma Cooperative Extension Service publication E- 1054. 32 pages.

Toledo, D., M. Sanderson, K. Spaeth, J. Hendrickson, and J. Printz. 2014. Extent of Kentucky bluegrass and its effect on native plant species diversity and ecosystem services in the Northern Great Plains of the United State. Invasive Plant Science and Management 7(4): 543-552.

USDA, NRCS. 2021. National Range and Pasture Handbook, (https://www.nrcs.usda.gov/wps/portal/nrcs/detailfull/national/landuse/rangepasture/?cid=stelprdb1043084)

USDA, NRCS. 2006. Land Resource Regions and Major Land Resource Areas of the United States, the Caribbean, and the Pacific Basin. U.S. Department of Agriculture Handbook 296.

USDA, NRCS. National Soil Information System, 100 Centennial Mall North, Room 152, Lincoln, NE 68508- 3866. (https://www.nrcs.usda.gov/wps/portal/nrcs/detail/soils/survey/tools/?cid=nrcs142p2_053552)

USDA, NRCS. National Water & Climate Center, 1201 NE Lloyd Blvd, Suite 802, Portland, OR 97232-1274. (https://www.wcc.nrcs.usda.gov/)

USDA, NRCS. 2001. The PLANTS Database, Version 3.1 (http://plants.usda.gov). National Plant Data Center, Baton Rouge, LA 70874-4490 USA.

USDA, NRCS, Various Published Soil Surveys.

USDI BLM.1999. Utilization studies and residual measurements. Interagency Technical Reference 1734-3.

Vinton, M.A. and E.M. Goergen. 2006. Plant-soil feedbacks contribute to the persistence of Bromus inermis in tallgrass prairie. Ecosystems 9: 967-976.

Whitman, W.H., H. Hanson, and R. Peterson. 1943. Relation of drought and grazing to North Dakota range lands. North Dakota Agricultural Experimentation Bulletin 340.

Contributors

Jeff Printz
Megan Baxter
ND NRCS: David Dewald, Jonathan Fettig, Alan Gulsvig, Mark Hayek, Chuck Lura, Jeff Printz, Steve Sieler, and Hal Weiser.

Approval

Suzanne Mayne-Kinney, 4/25/2025
