Physiographic features

This site typically occurs in deep depressions on uplands – till plains, lake plains, outwash plains, and eolian sand plains; however, it also occurs in drainageways and on depressional areas of flood plains. Parent materials are alluvium, eolian sands, glaciolacustrine sediments or glaciofluvial deposits. Slope is less than 1 percent.

Landform: depression, pothole, flood plain, fen

Table 2. Representative physiographic features

Climatic features

MLRA 55A is considered to have a continental climate with cold winters and hot summers, low humidity, light rainfall, and much sunshine. Extremes in temperature are common and characteristic of MLRA 55A. The continental climate is the result of the location of this MLRA in the geographic center of North America. There are few natural barriers on the northern Great Plains, so air masses move unobstructed across the plains and account for rapid changes in temperature.
 
The average annual precipitation is 17 to 19 inches (432 to 483 millimeters). The average annual temperature is 36⁰ to 41⁰ F (2⁰ to 5⁰ C). January is the coldest month with an average low temperature of about ⁻ 3⁰ F (⁻19⁰ C). July is the warmest month with an average high temperature of about 80⁰ F (27⁰ C).
 
About 75 percent of the rainfall occurs as high-intensity, convective thunderstorms during the growing season. Winter precipitation is typically snow. The annual snowfall is 25 to 50 inches (635 to 1,270 millimeters). The frost-free period averages 101 days and ranges from 108 days to 92 days. The freeze-free period averages 124 days and ranges from 128 to 119 days.
 
Growth of native cool-season plants begins in mid-April and continues to mid-July. Native warm-season plants begin growth in late May and continue to the end of August. Green-up of cool-season plants can occur in September and October when adequate soil moisture is present.

Long-term climate data is lacking for Turtle Mountain; however, annual precipitation for the International Peace Garden averaged 27.7 inches (704 millimeters) from 1967-1970 while that for Boissevain, Manitoba averaged 17.1 inches (434 millimeters). Turtle Mountain likely has greater precipitation, cooler temperatures and less evapotranspiration than the adjacent plains.

Table 3. Representative climatic features

Climate stations used

• (1) BOTTINEAU [USC00320941], Bottineau, ND

• (2) LEEDS [USC00325078], Leeds, ND

• (3) RUGBY [USC00327704], Rugby, ND

• (4) ROLLA 1NE [USC00327664], Rolla, ND

• (5) MINOT INTL AP [USW00024013], Minot, ND

• (6) EDMORE 1NW [USC00322525], Edmore, ND

• (7) GRANVILLE [USC00323686], Granville, ND

• (8) HANSBORO 4 NNE [USC00323963], Hansboro, ND

• (9) LANGDON EXP FARM [USC00324958], Langdon, ND

• (10) MINOT EXP STN [USC00325993], Minot, ND

• (11) MOHALL [USC00326025], Mohall, ND

• (12) TOWNER 2 NE [USC00328792], Towner, ND

• (13) WILLOW CITY [USC00329445], Willow City, ND

• (14) DEVILS LAKE KDLR [USW00014912], Devils Lake, ND

• (15) DRAKE 9 NE [USC00322304], Drake, ND

• (16) UPHAM 3 N [USC00328913], Upham, ND

• (17) VELVA 3NE [USC00328990], Velva, ND

• (18) WESTHOPE [USC00329333], Westhope, ND

• (19) CROSBY [USC00321871], Crosby, ND

• (20) BOWBELLS [USC00320961], Bowbells, ND

Influencing water features

This site is very poorly drained. Under average climatic conditions, it is inundated for very long periods (>30 days) during the growing season. Some soils in this site have endosaturation (apparent water table) and others have episaturation (perched water table above a subsoil layer with low or moderately low saturated hydraulic conductivity). Water tables in endosaturated soils typically range from 1.5 feet above to 6 inches below the surface during most of the growing season. The depth of ponding on episaturated soils, typically, is less than 3 feet in the spring and less than 1.5 feet in late summer. Surface water may not be evident in late summer; but saturation is generally within a depth of 18 inches during this time.

Water on the site is typically received from upland runoff, but on flood plains it is from stream overflow. Soils occurring on flood plains have frequent, long or very long flooding. Surface infiltration ranges from very slow to very rapid. Saturated hydraulic conductivity ranges from low to very high. These typically are flowthrough wetlands but can also be recharge wetlands. See Site Development and Testing plan for discussion of discharge wetlands.

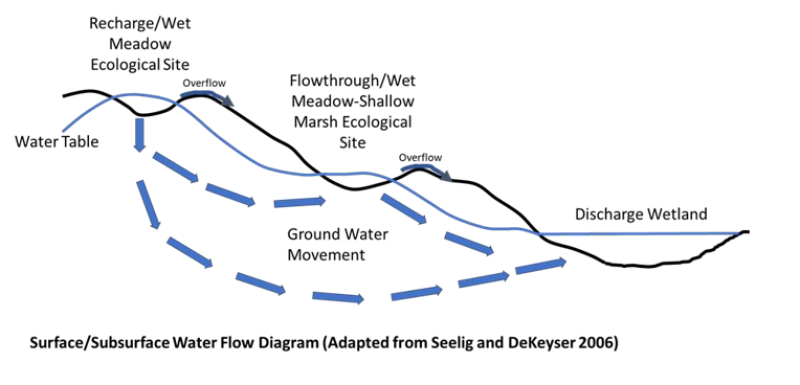

Wetlands receive water from different sources including ground water movement. Recharge wetlands have groundwater flow predominantly away from the wetland moving toward or into a flowthrough or discharge wetland basin. Flowthrough wetlands have groundwater flowing away from the wetland basin but is balanced with water flowing into the basin.

Water loss is primarily through evapotranspiration and lateral movement into (and evaporation from) adjacent soils. During periods of drought or extreme wetness, water table fluctuations will also have an impact on depth of ponding, especially in sandy soils. During periods of drawdown (e.g. prolonged drought), soil and water chemistry may significantly impact the soil/water/vegetation dynamics of the site (see Site Development and Testing Plan).

Fluctuations in specific conductance are less pronounced during average or normal water conditions than during periods of excessive water depth or extreme drought. The approximate normal and extreme range in specific conductance (micromhos/cm3) of surface water in plant communities that are indicators of differences in average salinity are as follows:

Plant Community Normal Range (micromhos/cm3 Electroconductivity (dS/m)
Fresh <40 - 500 0.5
Slightly brackish 500 - 2,000 0.5 to 2.0
Moderately brackish 2,000 - 5,000 2.1 to 5.0
Brackish 5,000 - 15,000 5.1 to 15.0
Sub-saline 15,000 - 45,000 15.1 to 45.0
Saline 45,000 -100,000 > 45.0

Soils in these depressions are considered seasonal wetlands; however, during wetter than normal climate cycles, these soils may have continuous, deep ponding throughout the growing season (or through multiple growing seasons).

Wetland description

Wetland Description: System Subsystem Class Sub-class Water Regime
Cowardin, et. al., 1979 Palustrine N/A Emergent Persistent Seasonal

Soil features

Nearly all soils associated with Shallow Marsh ES are in the Mollisol and Vertisol orders; however, a few Histosols are also currently included. The Mollisols are classified further as Vertic Argiaquolls, Cumulic Vertic Epiaquolls, Typic Endoaquolls, Cumulic Endoaquolls, Histic Endoaquolls, and Typic Calciaquolls. The Vertisols are classified further as Typic Endoaquerts, Typic Epiaquerts, and Typic Calciaquerts. The Histosols are further classified as Typic Haplohemists. Soils on this site were developed under wetland vegetation associated with very long periods of inundation. They typically formed in glaciolacustrine sediments, glaciofluvial deposits, eolian deposits, local alluvium from till, and flood plain alluvium. A few inches of organic materials are common on the surface of mineral soils that have never been cultivated. Soils with organic materials ranging from 8 inches to more than 3 feet thick also occur (see Site Development and Testing Plan).

The common feature of soils in this site is frequent seasonal inundation (typically extends into mid- summer or longer). Some are in deep depressions and potholes that are ponded through most of the growing season, and some are on flood plains with frequent, long or very long flooding. The soils are very deep and very poorly drained. Since hydrology (surface and sub-surface) is the primary factor used in identifying this site, all textures are included. Therefore, soil physical properties associated with texture vary widely. The dark-colored surface soil is more than 7 inches thick and generally less than 20 inches thick; however, soils with thin topsoil layers (<7 inches thick) also occur.

Soil salinity is typically none to slight (E.C. <8 dS/m), but a few soils may have moderate salinity (E.C. 8 - <16 dS/m) in a subsoil layer. Sodicity is typically none or low; but in a few soils, the SAR may exceed 13 in a subsoil layer. Soil reaction typically is slightly acid to moderately alkaline (pH 6.1 to 8.4); but in a few soils may be strongly alkaline (pH 8.5 to 9.0) in a subsoil layer. The calcium carbonate content typically ranges from 0 to 35 percent; some soils have a subsoil layer with CaCO3 accumulations as high as 45 percent.

This site should show no evidence of rills, wind-scoured areas, or pedestaled plants. The soil surface is stable and intact. Sub-surface soil layers are non-restrictive to root penetration, but in some soils water movement downward is slowed. These soils are not susceptible to water erosion. Prolonged ponded and/or saturated conditions strongly influence the soil/water/plant relationship.

Major soil series correlated to the Shallow Marsh site are Dovray, Grano, Ludden, Parnell, Rauville, Roliss, and Venlo. Very poorly drained phases of the Borup, Colvin, Fargo, Fossum, Hegne, Lowe, Manfred, and Marysland are included in the site. Also included are Eramosh and Rifle which have surface organic materials greater than 8 inches thick.

Access Web Soil Survey (https://websoilsurvey.sc.egov.usda.gov/App/WebSoilSurvey.aspx) for specific local soils information.

Table 4. Representative soil features

Animal community

Animal Community – Wildlife Interpretations

Landscape:

The MLRA 55A landscape is characterized by mostly nearly level to gently rolling till plains with some steep slopes adjacent to streams. The MLRA includes areas of kettle holes, kames, and ground moraines. MLRA 55A is considered to have a continental climate with cold winters and hot summers, low humidity, light rainfall, and much sunshine. Extremes in temperature are common and characteristic of the MLRA. This area supports mid- to tall-grass prairie vegetation with quaking aspen, bur oak, green ash, and willow species growing on the higher elevations in Turtle Mountain, on moraines in proximity of Devils Lake, Pembina River Escarpment and Gorge, and various drainageways throughout the MLRA. Numerous depressional wetlands are ringed with quaking aspen. Complex intermingled ecological sites create diverse grass/shrub land habitats interspersed with varying densities of linear, slope, depressional, and in-stream wetlands associated with headwater streams and tributaries of the Souris and Pembina Rivers. MLRA 55A is located entirely within North Dakota and within the boundaries of the Prairie Pothole Region. The primary land use is cropland. Glacial Lake Souris and the Devils Lake Basin are known for exceptional fertility with major crops including corn, canola, soybeans, and small grains. Together, these two areas make up 73% of the MLRA (Glacial Lake Souris 5500 mi2, 43%; and the Devils Lake Basin 3810 mi2, 30%).

Turtle Mountain (1000 mi2 of which 405 mi2 are found in North Dakota), in the north-central part of the MLRA on the Canadian border, is approximately 1,950 to 2,541 feet (595 to 775 meters) in elevation, rising approximately 600 to 800 feet (150 meters) above the adjacent till plain. Home to an extensive forest of quaking aspen, bur oak, green ash, and willows, it has an understory of beaked hazel with associates of chokecherry, Saskatchewan serviceberry, downy arrowwood, and rose. Turtle Mountain comprises the largest area of quaking aspen forest in North Dakota.

The Pembina Escarpment extends from the Canadian border southeast to Walhalla where the Pembina River enters the floor of the Red River Valley in MLRA 56A. Mainly found on steep slopes along the Pembina River, the Pembina Gorge is in a rugged and sheltered setting with bur oak, green ash, cottonwood, and American elm. Encompassing approximately 12,500 acres, the Pembina Gorge is one of the largest uninterrupted blocks of woodlands in North Dakota. This segment of the Pembina River is the longest segment of unaltered river valley in the North Dakota.

Two major Hydrologic Unit Areas make up this MLRA. 56% of the MLRA drains into the Souris River while 44% drains into the Red River (via the Pembina River) or into Devils Lake (out-letting to Sheyenne River via a pump, pipeline, canal system). The North Dakota portion of the Souris River watershed is in this MLRA. The Souris River basin drains nearly 23,600 square miles and has a long history of flooding.

By the mid-19th century, over 75% of the MLRA had been converted from mid- to tall-grass prairie or woodland to annual crop production. To alleviate crop production loss from wetlands and overland flow, a system of shallow surface ditches, judicial ditches, and road ditches removes surface water in spring and during high rainfall events. Tile drainage systems have been or are being installed extensively throughout MLRA 55A for sub-surface field drainage to enhance annual crop production.

Historic Communities/Conditions within MLRA 55A:

The northern tall- and mixed-grass prairie along with the quaking aspen forest were disturbance- driven ecosystems with fire, herbivory, and climate functions as the primary ecological drivers (either singly or often in combination). American bison roamed MLRA 55A wintering along the Souris River and migrating through MLRA 55A into MLRAs 56A and 55B. Many species of grassland birds, small mammals, insects, reptiles, amphibians, elk, moose, pronghorn, and large herds of American bison were historically among the inhabitants adapted to this region. Roaming herbivores, as well as several small mammal and insect species, were the primary consumers linking the grassland resources to large predators (such as the wolf, American black bear, grizzly bear) and smaller carnivores (such as the coyote, bobcat, red fox, and raptors). Extirpated species include free-ranging American bison and gray wolf (breeding). Extinct is the Rocky Mountain locust.

Present Communities/Conditions within MLRA 55A:

This area supports natural prairie vegetation characterized by western wheatgrass, green needlegrass, needle and thread, and blue grama. Little bluestem is an important species on the more sloping and shallower soils. Prairie cordgrass, northern reedgrass, big bluestem, and wheat sedge are important species on soils with higher water tables. Western snowberry, leadplant, and prairie rose are commonly interspersed throughout the area. Native forests occur in Turtle Mountain, Pembina Gorge, moraines near Devils Lake, woody draws, scattered tracts along the Souris River, and in the sand dunes in west central region of the MLRA.

Over 75% of MLRA 55A has been converted to annual crop production. European influence has impacted remaining grassland, forestland, and shrubland by domestic livestock grazing, elimination of fire, tree harvest, removal of surface and subsurface hydrology via artificial drainage, and other anthropogenic factors influencing plant community composition and abundance.

Hydrological manipulation is extensive throughout the MLRA. Extensive wetland and subsurface tile drainage have taken place. Ephemeral and intermittent streams and the Souris River have been straightened - removing sinuosity, creating isolated oxbows, and converting riparian zones to annual crop production. These anthropogenic impacts have reduced flood water detention and retention on the landscape. The results have been increasing storm water runoff sediment and nutrient loading impacting the Souris and Des Lacs Rivers and their tributaries along with Devils Lake and other lakes within the MLRA. The installation of instream structures has reduced aquatic species movement within the MLRA. Two large dams in Saskatchewan, Canada (Rafferty on the Souris River and Alameda on Moose Mountain Creek, a major tributary to the Souris River) were built, in part, to reduce flood peaks on the Souris River. In addition, three USFWS National Wildlife Refuges were created by building two low-head dams on the Souris River and one on the Des Lacs River in North Dakota. Numerous low-head dams are located on the Souris and Des Lacs Rivers in North Dakota. The Eaton Irrigation Project low-head dam, located in the vicinity of Towner, North Dakota, provides flood irrigation to approximately 6,700 acres of hayland and pastureland.

The loss of the American bison and fire, as primary ecological drivers, greatly influenced the character of the remaining native plant communities and the associated wildlife moving towards a less diverse and more homogeneous landscape. Annual cropping is the main factor contributing to habitat fragmentation, reducing habitat quality for area-sensitive species. These influences fragmented the landscape, reduced or eliminated ecological drivers (fire), and introduced exotic species including smooth brome, Kentucky bluegrass, and leafy spurge which further impacted plant and animal communities.

Included in this MLRA are over 121,000 acres of National Wildlife Refuges and over 77,000 acres of waterfowl production areas owned and managed by the United States Fish and Wildlife Service. White Horse Hill National Game Preserve is a 1,674-acre national wildlife refuge sitting on the south shores of Devils Lake, about 10 miles south of the city of Devils Lake. Numerous state-owned parks, state wildlife management areas, North Dakota Forest Service and Department of Trust Lands are found in the MLRA. Wakopa Wildlife Management Area is the largest WMA covering approximately 6,739 acres.

Some characteristic wildlife species in this area are:

Birds: Common loon, common goldeye, bufflehead, ruffed grouse, broad-winged hawk, alder flycatcher, mourning warbler, mallard, blue-winged teal, red-tailed hawk, American kestrel, killdeer, eastern and western kingbird, American crow, common yellowthroat, clay-colored sparrow, vesper sparrow, red-necked grebe, Savannah sparrow, downy and hairy woodpeckers, black-capped chickadee, white-breasted nuthatch, and brown-headed cowbird.

Mammals: Northern short-tailed shrew, water shrew, beaver, muskrat, mink, long-tailed weasel, American martin, fisher, white-tailed jackrabbit, snowshoe hare, Franklin’s ground squirrel, thirteen- lined ground squirrel, northern pocket gopher, plains pocket gopher, western harvest mouse deer mouse, meadow vole, meadow jumping mouse, western jumping mouse, coyote, red fox, racoon, American badger, striped skunk, white-tailed deer, elk, moose, and woodchuck, red squirrel, porcupine, and northern flying squirrel.

Reptiles/Amphibians: American toad, Great Plains toad, northern leopard frog, chorus frog, tiger salamander, plains garter snake, smooth green snake, wood frog, and common garter snake.

Presence of wildlife species is often determined by ecological site characteristics including grass and forb species, tree and shrub species, hydrology, aspect, and other associated ecological sites. The home ranges of a majority species are usually larger than one ecological site or are dependent on more than one ecological site for annual life requisites. Ecological sites offer different habitat elements as the annual life requisites change. Habitat improvement and creation must be conducted within the mobility limits of a known population for the species.

Insects play an important role providing ecological services for plant community development. Insects that are scavengers or aid in decomposition provide the food chain baseline sustaining the carnivorous insects feeding upon them. Many insects provide the ecological services necessary for pollination, keeping plant communities healthy and productive. Insects provide a protein food source for numerous species including grassland-nesting birds, woodpeckers, and woodland edge and interior species, and their young. Extensive use of insecticides for specialty crops (such as soybeans, corn, and other crops) has greatly reduced insects within this MLRA.

Species of Concern within MLRA 55A:

The following is a list of species considered “species of conservation priority” in the North Dakota State Wildlife Action Plan (2015) and “species listed as threatened, endangered, or petitioned” under the Endangered Species Act within MLRA 55A at the time this section was developed:

Invertebrates: Dakota skipper, monarch butterfly, and regal fritillary. Within the MLRA, the United States Fish and Wildlife Service lists 5 areas (in Rolette and McHenry Counties) as critical habitat for the Dakota skipper.

Birds: American avocet, American bittern, American kestrel, American white pelican, Baird’s sparrow, bald eagle, black tern, black-billed cuckoo, bobolink, canvasback, chestnut-collared longspur, ferruginous hawk, Franklin’s gull, grasshopper sparrow, horned grebe, LeConte’s sparrow, lesser scaup, loggerhead shrike, marbled godwit, Nelson’s sparrow, northern harrier, northern pintail, piping plover, sharp-tailed grouse, short-eared owl, Sprague’s pipit, Swainson’s hawk, upland sandpiper, western meadowlark, whooping crane, willet, Wilson’s phalarope, and yellow rail.

Mammals: American martin, Arctic shrew, big brown bat, gray fox, little brown bat, northern long- eared bat, plains pocket mouse, pygmy shrew, Richardson’s ground squirrel, river otter, and Townsend’s big-eared bat.

Amphibians/Reptiles: Canadian toad, common snapping turtle, plains hog-nosed snake, and smooth green snake.

Fish: Finescale dace, hornyhead chub, largescale stoneroller, logperch, northern pearl dace, and trout-perch.

Mussels: Black sandshell, creek heelsplitter, creeper, mapleleaf, and pink heelsplitter.

Grassland and Woodland Management for Wildlife in the MLRA 55A

Management activities within the community phase pathways impact wildlife but are essential for maintenance of healthy grassland ecosystems. Community phase, transitional, and restoration pathways are keys to long-term management within each State and between States. Timing, intensity, and frequency of these inputs can have dramatic positive or negative effects on local wildlife species. Ranchers and other land managers must always consider the long-term beneficial management effects of grassland and woodland resources in comparison to typically short-term negative effects to the habitats of individual species.

Ecological sites occur as intermingled complexes on the landscape with gradual or sometimes abrupt transitions. Rarely do ecological sites exist in large enough acreage to manage independently for wildlife. Conversion to annual cropping and fragmentation due to transportation and electrical transmission corridors and to rural housing are main causes of fragmentation. This MLRA supports ecological sites that are dominated by woody vegetation and can be located adjacent to ecological sites that support tall- to mid-statured grasses (Thin Loamy/Shallow Loamy) or are adjacent to ecological sites that support wetland vegetation (Shallow Marsh and Wet Meadow).

Management of these ecological site complexes challenges managers to properly manage the entire landscape. A management strategy for one ecological site may negatively impact an adjacent site. For example, grazing Upland Hardwood Forest or Loamy Savannah ecological sites along with herbaceous dominated Loamy Overflow ecological sites may degrade one site by under-use, favoring woody vegetation or increasing exotic cool-season grasses.

Life requisites and habitat deficiencies are determined for targeted species. Deficiencies need to be addressed along community phase, transitional, and restoration pathways as presented in specific state-and-transition models. Ecological sites should be managed and restored within the site’s capabilities to provide sustainable habitat for targeted species or species guilds. Managers also need to consider vegetative associations provided by adjacent/intermingled ecological sites for species with home ranges or life requisites that may not be provided by one ecological site. Understanding specific grassland species’ sensitivity to woody encroachment and preferred vegetative structure enables managers to determine which grassland-nesting bird species will avoid grassland habitats adjacent to Upland Hardwood Forest or Loamy Savannah ecological sites or woody dominated, Plant Community Phase 5, Loamy ecological site.

Many passerine species utilize MLRA 55A as a major migratory travel corridor. Grassland species sensitive to woody associations during nesting and brooding may utilize the woodier fragmented sites, such as the Wooded State 5.0 in the Loamy ecological site, during migration.

Grassland-nesting birds use various grass heights for breeding, nesting, foraging, or winter habitat. While most species use varying heights, many have a preferred vegetative stature height or sensitivity to woody vegetation. Understanding the sensitivity of grassland species to woody vegetation and preferred vegetative structure enables managers to determine which grassland-nesting bird species avoid grassland habitats adjacent to Upland Hardwood Forest or Loamy Savannah ecological sites.

The following chart provides sensitivity to woody vegetation and preferred vegetative stature heights. To see the chart please follow the hyperlink:

https://efotg.sc.egov.usda.gov/references/public/ND/55A_Shallow_Marsh_Narrative_FINAL_Ref_FSG.pdf

Shallow Marsh Wildlife Habitat Interpretation:

Shallow Marsh ecological sites are very poorly drained soils located in depressions and on floodplains. Associated ecological sites include Clayey, Limy Subirrigated, Loamy Overflow, Saline Lowland, Loamy, Sodic Subirrigated, Subirrigated, Subirrigated Sands, and Wet Meadow. Shallow Marsh habitat features and components commonly support grassland- nesting birds, notably birds utilizing wetland vegetation habitats (such as Nelson’s and LeConte’s sparrow, sedge wren, and water and wading birds using uplands for nesting). Insects rely on associated forbs and grasses for survival and serve as food sources for birds and their young, as well as forage for small and large herbivores. Shallow Marsh ecological sites support a diversity of invertebrates important in the diet of water birds.

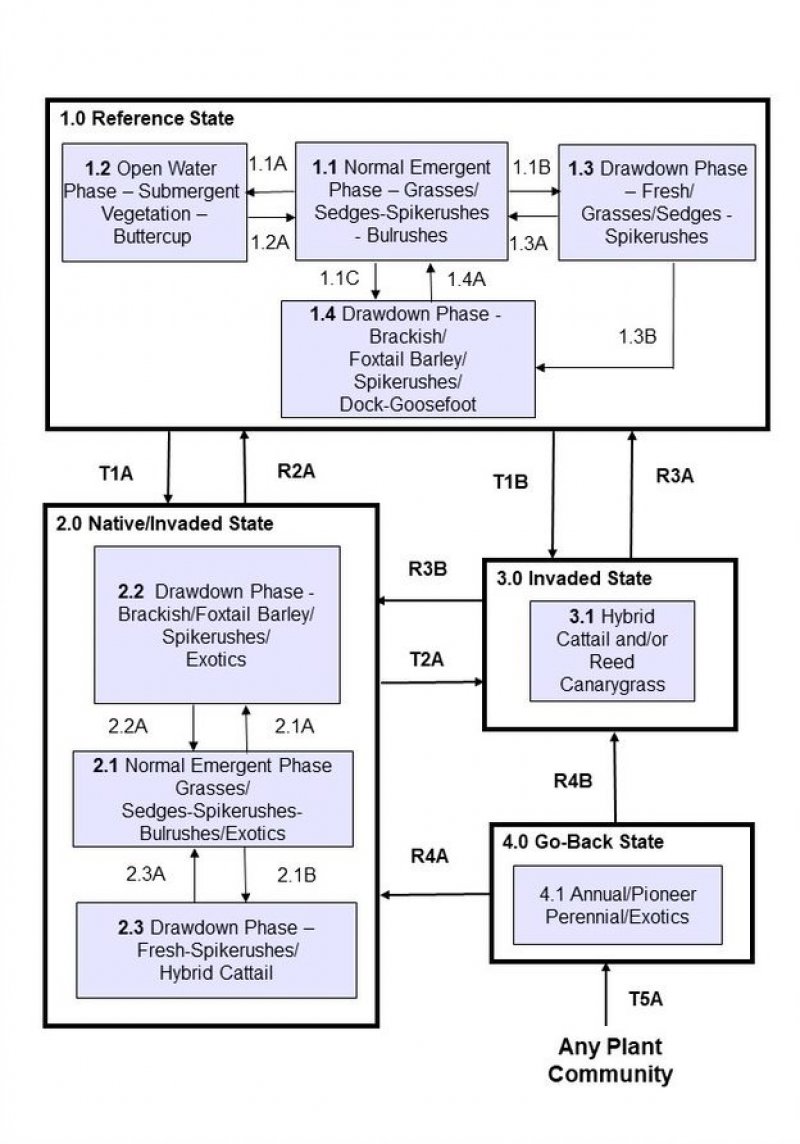

Shallow Marsh ecological sites may be found in four plant community states within a local landscape. Multiple plant community phases exist within this ecological site dependent upon water levels, saturation, water and soil chemistry, and management. Today, these states occur primarily in response to precipitation (extended periods of above average precipitation or drought), water chemistry, fire, grazing, non-use, and other anthropogenic disturbances.

Restoration pathways from State 2.0 and 3.0 back to State 1.0 may occur. Restoration Pathway R2A’s and R3A’s main ecological driver is increased water levels above plant height causing plant mortality - downing out exotic forbs and grasses. Restoration Pathway R3A is dependent upon a combination of a successful wetland restoration or seeding, increased water regime, chemical treatment, and/or sediment/nutrient removal. However, maintenance and/or restoration of adjacent upland ecological sites is critical for full restoration of the Shallow Marsh ecological site to Reference.

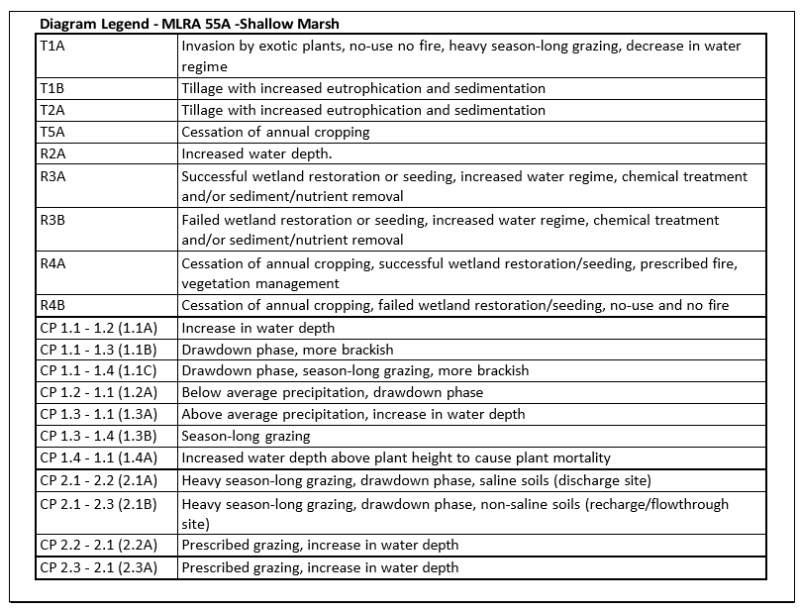

Non-anthropogenic Community Phase, Transition, and Restoration Pathways rely predominantly on water regime, either increasing or decreasing water depth with associated saturation. While tillage is the main anthropogenic impact to Shallow Marsh ecological sites within MLRA 55A, heavy season-long grazing during a drawdown phase can cause salinization, especially on discharge or flow-through sites. Degree of tillage and the length of time the site is tilled will have a significant impact on the ability of the site to follow Restoration Pathways R3A, R3B, R4A, and R4B. The longer the wetland is tilled, the fewer native wetland plant propagules are available to recolonize the wetland. Increased salinity due to tillage will also negatively impact restoration.

Native wildlife, dependent upon shallow wetlands found in the Shallow Marsh ecological site, generally benefit from the heterogeneous grasslands/graminoids found in Community Phases in States 1.0 and 2.0. Plant communities within States 1.0 and 2.0 are dependent upon long-term changes in precipitation and impacted by grazing intensity and frequency. Management along community phase, transition, or restoration pathways should focus upon attainable changes. Short- and long-term monetary costs must be evaluated against short- and long-term ecological services in creating and maintaining habitat of sufficient quality to support a sustainable population density.

Hydrological manipulation (surface or tile drainage, pumping, surface water diversion, etc.) modifies this ecological site’s functions, having a significant negative impact to wetland dependent wildlife (such as invertebrates, amphibians, and water birds). Without restoring hydrologic function (which may include range seeding), managers need to reference state and transition models within those sites. Hydrology will need to be fully restored in Wet Meadow and Shallow Marsh ecological sites for these sites to properly function. It is recommended that managers review the appropriate State and Transition Models prior to wetland restoration.

1.0 Reference State:

Community Phase 1.1 Normal Emergent Phase: Grasses/Sedges-Spikerushes-Bulrushes: This plant community offers quality vegetative cover for wetland associated wildlife; every effort should be made to maintain this ecological site within this community phase in State 1.0. Water level is the main ecological driver maintaining this plant community. However, this phase retains high functionality through continued maintenance including prescribed grazing with adequate recovery period, as well as prescribed burning.

Invertebrates: Shallow Marsh ecological sites provide habitat for a diverse suite of aquatic invertebrates providing an important trophic link between macrophytes and vertebrates that depend upon them as food. The structure provided by vegetated wetlands increases the abundance of aquatic invertebrates compared to less vegetated sites. Maximum invertebrate production occurs when emergent and submergent vegetation are interspersed.

Insects play a role in maintaining the forb community and provide a forage base for grassland birds, wetland birds, and rodents. Early season pollinator plants are limited; however, a variety of forbs provide mid- to late-season pollen and nectar. Wet soil does not provide habitat for ground nesting pollinator species. This site does not provide habitat for Dakota skippers, regal fritillaries, or monarch butterflies. Depending on forb species composition, this site may be visited for nectar.

Birds: This plant community provides quality nesting, foraging, and escape habitats favored by mid- to tallgrass-nesting birds, especially those species preferring wetter (hydric) habitats (such as Nelson’s sparrow, black tern, northern harrier, sedge wren, waterfowl, and other water birds). This site provides waterfowl pair bonding sites, excellent invertebrate food source for egg-laying water bird hens and water bird brood habitat. This plant community provides winter cover and escape for many upland birds. This site provides good hunting opportunities for grassland raptors, especially northern harrier.

Mammals: The diversity of grasses and forbs provide high nutrition levels for small and large herbivores. In addition, it provides foraging opportunities for raccoon, skunks, coyotes, and other mammals that use wetlands and wetland edges for food resources. Tall- to mid- statured vegetation provides suitable food, thermal, protective, and escape cover for small and large herbivores.

Amphibians and Reptiles: This ecological site can provide habitat for the northern leopard frog, Canadian toad, and tiger salamander. Duration of surface water provides for successful egg laying and tadpole development.

Fish and Mussels: This ecological site can be directly associated with streams, rivers, or water bodies. As a seasonal wetland, it ponds water into mid-summer or longer. This site receives run-on hydrology from adjacent ecological sites and provides hydrology to shallow ground water and other surface waterbodies. Management on Shallow Marsh sites, in conjunction with neighboring run-off sites, will have a direct effect on aquatic species within the site and in streams and/or tributaries receiving water from Shallow Marsh sites. Optimum hydrological function and nutrient cycling limit potential for sediment yield and nutrient loading to the adjacent aquatic ecosystems from State 1.0.

Community Phase 1.2 Open Water: Submergent Vegetation-Buttercup: This plant community phase occurs during periods of increased water depth, usually associated with prolonged periods of above average precipitation. The increased ponded water depth favors submerged vegetation and may create a mosaic of vegetation in conjunction with Plant Community Phase 1.1 and 1.3. The forb community is limited to submerged vegetation with flowers borne just above the water surface.

Invertebrates: Invertebrate abundance and diversity will increase with submerged vegetation, while pollen and nectar sources for bees and butterflies is limited to mid- to late- season when flowers are borne on submerged vegetation above the water surface.

Birds: Dominated by submerged vegetation, this site provides high protein source for egg- laying waterfowl hens. Dependent upon the duration of ponding into the growing season, the site will provide an excellent protein source for waterfowl broods with escape cover when associated with Plant Community Phase 1.1. This site provides good hunting opportunities for grassland raptors, especially northern harrier.

Mammals: Provides similar life requisites as Community Phase 1.1; however, this Plant Community Phase no longer provides thermal, protective, escape, and winter habitat for a big game animals and other small herbivores.

Amphibians and Reptiles: Provides similar life requisites as Community Phase 1.1.

Fish and Mussels: Provides similar life requisites as Community Phase 1.1.

Community Phase 1.3 Drawdown Phase, Fresh: Grasses/Sedges-Spikerushes: This plant community occurs during the drawdown phase associated with prolonged periods of below average precipitation. The plant community is dominated by short- to mid-statured vegetation. This phase retains high functionality and, with average or above average precipitation (via Community Phase Pathway 1.3A), will revert to Plant Community Phase 1.1.

Invertebrates: Insects play a role in maintaining the forb community and provide a forage base for grassland birds, wetland birds, and rodents. This plant community contains a variety of forbs providing season-long pollen and nectar. However, due to wet soils, ground nesting pollinator species do not prefer this site. Dakota skippers, regal fritillaries, or monarch butterflies may use this site when swamp milkweed, New England aster, or goldenrods occupy this site.

A diverse suite of aquatic invertebrates still occurs in this plant community phase; however, abundance is reduced due to loss of emergent vegetation. Rapid warming during spring snowmelt allows the invertebrate population to flourish.

Birds: Provides similar life requisites as Community Phase 1.1; however, a shorter-statured plant community favors bird species that prefer short- to mid-statured vegetation.

Mammals: Provides similar life requisites as Community Phase 1.1; however, the shorter- statured vegetation limits thermal, protective, and escape cover for small and large herbivores.

Amphibians and Reptiles: Provides similar life requisites as Community Phase 1.1; however, the lack of surface water does not provide the opportunity for successful egg laying and tadpole development habitat.

Fish and Mussels: Provides similar life requisites as Community Phase 1.1.

Community Phase 1.4 Drawdown Phase, Brackish: Foxtail Barley/Spikerushes/Dock-Goosefoot: This plant community phase occurs during the drawdown phase caused by long- term, below average precipitation coupled with season-long grazing. Increased salinity occurs allowing grazing tolerant foxtail barley to become one of the dominant species in this plant community. Grazing tolerant spikerush species increase along with weedy native forbs (goosefoot/dock).

Invertebrates: Pollinator friendly forbs decrease as salinity and foxtail barley increase - limiting pollen and nectar availability. Bare ground increases but few ground nesting species, if any within MLRA 55A, use saline soils for nesting sites. This shift to drier soil conditions reduces or eliminates aquatic invertebrates.

Birds: This plant community phase does not provide waterfowl brood habitat. Depending on spring moisture conditions, waterfowl may find abundant invertebrate populations during the breeding season. As the site draws down, wading bird habitat increases as shallow water increases and as taller vegetation is replaced with increasing amount of bare ground. Invertebrates remain abundant early in the growing season unless prolonged below average precipitation persists drying of the soil, reducing invertebrate abundance and diversity.

Mammals: A shift to short-grass species, drier soil conditions, and increased salinity reduces habitat for large mammals, while still providing vegetative cover for small mammals. Thermal, escape, and winter cover is no longer provided for larger ungulates. Foraging opportunities for raccoon, skunks, coyotes, and other mammals becomes limited.

Amphibians and Reptiles: Loss of surface water and increased salinity reduces habitat for amphibians and reptiles. Tiger salamander habitat is lost while saline soils are not favored by frogs and toad species.

Fish and Mussels: Provides similar life requisites as Community Phase 1.1.

2.0 Native Invaded State:

Community Phase 2.1 Normal Emergent Phase: Grasses/Sedges-Spikerushes- Bulrushes/Exotics: This transition from the State 1: Reference State to State 2: Native/Invaded State results from the colonization and establishment of exotic plants, often exotic strains of reed canarygrass. Exotic forbs that may occur include the hybrid cattail (cross between narrowleaf and broadleaf cattail), Canada thistle, and purple loosestrife.

Heavy season-long grazing, prolonged periods of non-use and no fire, and a decrease in the water regime of the site are often involved with this transition. Excessive litter accumulation provides conditions favorable to exotic strains and/or hybrids of reed canarygrass and/or cattails which can quickly spread to form virtual monocultures. As a result, the transition to State 3: Invaded State can be expected. This plant community phase has a very similar appearance and function to the Plant Community 1.1. Managers should consider management within the State 2.0 Community Phase Pathways to avoid transitioning to State 3.0.

Invertebrates: Provides similar life requisites as Community Phase 1.1.

Birds: Provides similar life requisites as Community Phase 1.1.

Mammals: Provides similar life requisites as Community Phase 1.1.

Amphibians and Reptiles: Provides similar life requisites as Community Phase 1.1.

Fish and Mussels: Provides similar life requisites as Community Phase 1.1.

Community Phase 2.2 Drawdown Phase, Brackish: Foxtail Barley/Spikerushes/Exotics: This plant community phase occurs with heavy season-long grazing combined with a drawdown phase and increased salinity. Grazing and salt tolerant foxtail barley and assorted forbs dominate the site while wheat sedge and other native grasses decline.

Invertebrates: Provides similar life requisites as Community Phase 1.4. Heavy season-long grazing and saline soils do not allow flowering plants to recover, limiting pollen and nectar resources for bees and other pollinating insects. In addition, a shift from perennial to annual forbs reduces season-long pollen and nectar sources for pollinating insect species. These annual forbs do not provide pollen and nectar resources at the same high level as native forbs provide. Prolonged periods of reduced precipitation favor ground nesting pollinators; however, increased compaction from mechanical impacts or increased livestock presence negatively impacts ground nesting pollinator opportunities. This shift to drier soil conditions reduces or eliminates aquatic invertebrates.

Birds: Provides similar life requisites as Community Phase 1.4.

Mammals: Provides similar life requisites as Community Phase 1.4.

Amphibians and Reptiles: Provides similar life requisites as Community Phase 1.4.

Fish and Mussels: Provides similar life requisites as Community Phase 1.1.

Community Phase 2.3 Drawdown Phase, Fresh: Spikerushes/Hybrid Cattail: This plant community phase occurs with heavy season-long grazing combined with a drawdown phase. This combination favors spikerushes, hybrid cattail and annual forbs.

Invertebrates: Long-term heavy grazing coupled with reduced to no ponding favors annual forb and spikerush species which limits pollen and nectar resources for bees and other pollinating insects. These annual forbs do not provide pollen and nectar resources at the same high level as native forbs provide. Prolonged periods of reduced precipitation favor ground nesting pollinators; however, increased compaction from mechanical impacts or increased livestock presence negatively impacts ground nesting pollinator opportunities. This shift to drier soil conditions reduces or eliminates aquatic invertebrates until the site is inundated again.

Birds: This shorter, drier plant community reduces or eliminates nesting, brooding, or feeding opportunities for waterfowl and other water birds.

Mammals: Short spikerushes and annual forbs provide limited resources for mammals of all sizes.

Amphibians and Reptiles: Provides similar life requisites as Community Phase 1.3.

Fish and Mussels: Provides similar life requisites as Community Phase 1.1.

State 3: Invaded State:

Community Phase 3.1 Hybrid Cattail and/or Reed Canarygrass: Eutrophication and sedimentation of the site, often due to tillage on or adjacent to the site, transitions this plant community to one dominated hybrid cattails or exotic strains/hybrids of reed canarygrass. Monotypic stands of hybrid cattail generally develop and out-compete other grasses, graminoids or forbs. Mechanical treatment, sediment removal, prescribed burning, reseeding, and buffer reestablishment may all be needed to restore this site to State 1.0 (via Restoration Pathway R3A) or State 2.0 (via Restoration Pathway R3B). Extended periods of above average precipitation along with mechanical treatment, sediment removal, prescribed burning, and reseeding (via Restoration Pathway R3A or R3B) can move this plant community back to State 1.0 or 2.0.

Invertebrates: Saturated to ponded soils favor aquatic invertebrates. Monotypic stands of hybrid cattail or reed canarygrass limit forb species, providing a decrease in pollen and nectar sources for insects. Restoration efforts, including prescribed grazing, can reduce hybrid cattail and reed canarygrass while increasing forb diversity. The initial flush of forbs may be Canada thistle and field sowthistle resulting from restoration efforts, especially prescribed grazing.

Birds: Monotypic stands of hybrid cattail or reed canarygrass reduce water bird use. LeConte’s and Nelson’s sparrow, marsh wren, and yellow rail favor this plant community. American bittern may use this site. Yellow-headed and red-winged black birds use cattail dominated wetlands for roosting, especially in late summer and early fall prior to migration. This plant community can provide winter cover for ring-necked pheasants when located near a winter food source. Restoration efforts, including prescribed grazing, can reduce hybrid cattail and reed canary grass which increases open water and provides foraging and breeding habitat for dabbling ducks and shore birds including an excellent food source of aquatic invertebrates.

Mammals: Monotypic stands of hybrid cattail or reed canarygrass provide winter cover for large herbivores including white-tailed deer and moose. Depending on degree of ponding or saturation, this plant community may provide season-long escape cover for white-tailed deer. Tall- to mid-statured vegetation provides suitable food, thermal, protective, and escape cover for small and large herbivores.

Amphibians and Reptiles: Provides similar life requisites as Community Phase 1.1.

Fish and Mussels: Provides similar life requisites as Community Phase 1.1.

4.0 Go-Back State:

Community Phase 4.1 Annual/Pioneer Perennial/Exotics: Following cropland abandonment, these plant communities are dominated by early pioneer annual and perennial plant species. Plant species composition and production are highly variable and dependent upon water depth and length of time the wetland has been in crop production contributing to eutrophication and sedimentation of wetland basin. Hybrid cattail, Canada thistle, field sowthistle, other annual weeds (dock, smartweed, barnyard grass, etc.), quackgrass, foxtail barley, slough grass, and pioneering spikerush species are typical pioneer species. Weedy plants can provide pollinator habitat along with spring and summer cover for many mammals and birds, and their young. Dense weed cover can keep soils moist, increasing insect presence. Tall stature provided by some weeds offers thermal cover and seeds throughout winter. The response by wildlife species will be dependent upon ponded water depth, plant community composition, vegetative stature, patch size, and management activities (such as wetland restoration, sediment removal, prescribed grazing, burning, inter-seeding, haying, or noxious weed control).

Successful restoration of native species along Transition Pathway R4A can result in a native grass and forb community in State 2.0. Management activities within State 2.0 are needed to avoid a transition out of State 2.0. Unsuccessful wetland restoration or unsuccessful native forb and grass seeding along Transition Pathway R4B will result in State 3.0.

Animal Community – Grazing Interpretations:

Note: When interpreting plant production in regard to stocking rate, several things must be taken into consideration. Annual production is highly variable and subject to wide fluctuations, palatability is generally low, seasonally quite variable, and access to the forage can be limited due to water levels. As a result, caution must be exercised so that the stocking rate is based on a realistic inventory or a reasonable estimate of usable forage. More accurate stocking rate estimates should eventually be calculated using actual stocking rate information and monitoring data.

NRCS defines prescribed grazing as “managing the harvest of vegetation with grazing and/or browsing animals with the intent to achieve specific ecological, economic, and management objectives”. As used in this site description, the term ‘prescribed grazing’ is intended to include multiple grazing management systems (e.g., rotational grazing, twice-over grazing, conservation grazing, targeted grazing, etc.) provided that, whatever management system is implemented, it meets the intent of prescribed grazing definition.

The basic grazing prescription addresses balancing forage demand (quality and quantity) with available forage, varying grazing and deferment periods from year-to-year, matching recovery/deferment periods to growing conditions when pastures are grazed more than once in a growing season, implementation of a contingency (e.g., drought) plan, and a monitoring plan. When the management goal is to facilitate change from one plant community phase or state to another, then the prescription needs to be designed to shift the competitive advantage to favor the native grass and forb species.

Grazing levels are noted within the plant community narratives and pathways in reference to prescribed grazing management. “Degree of utilization” is defined as the proportion of the current year’s forage production that is consumed and/or destroyed by grazing animals (may refer to a single plant species or a portion or all the vegetation). “Grazing utilization” is classified as slight, moderate, full, close, and severe (see the following table for description of each grazing use category). The following utilization levels are also described in the Ranchers Guide to Grassland Management IV. Utilization levels are determined by using the landscape appearance method as outlined in the Interagency Technical Reference “Utilization Studies and Residual Measurements” 1734-3.

Utilization Level % Use Description

Slight (Light) 0-20 Appears practically undisturbed when viewed obliquely. Only choice areas and forage utilized.

Moderate 20-40 Almost all of accessible range shows grazing. Little or no use of poor forage. Little evidence of trailing to grazing.

Full 40-60 All fully accessible areas are grazed. The major sites have key forage species properly utilized (about half taken, half left). Points of concentration with overuse limited to 5 to 10 percent of accessible area.

Close (Heavy) 60-80 All accessible range plainly shows use and major sections closely cropped. Livestock forced to use less desirable forage, considering seasonal preference.

Severe > 80 Key forage species completely used. Low-value forages are dominant.

Hydrological functions

Under unaltered hydrologic conditions, the site is dominated by soils in hydrologic group D; where significantly impacted by drainage practices, these soils are in hydrologic group A/D, B/D, or C/D depending upon soil texture. Infiltration varies from very slow to very rapid; runoff potential for this site is none to very low.

Hydrological manipulation (surface or tile drainage, pumping, surface water diversion, etc.) modifies this ecological site. Under natural conditions, this ecological site includes a wide range of soil textures; after hydrologic manipulation, soil texture often becomes a more significant factor in vegetative response. If the degree of manipulation allows soil texture to influence the plant community or if altered soil properties (i.e., salinization or the addition of fill material) results in vegetation change, a transition to a completely different ecological site may have occurred. The transition to an altogether different ecological site will depend upon severity of altered hydrology, soil properties, and corresponding vegetation. Due to the many variables (e.g., hydrology, success, and type of drainage, etc.), impacts to the ecological site will be site-specific. As a result, each situation will require field investigation to determine what, if any, change in ecological site designation is necessary and proceed accordingly.

Without restoring hydrologic function (which may include range seeding), managers need to refer to reference state and transition models within those sites. Hydrology will need to be fully restored in Wet Meadow and Shallow Marsh ecological sites for these sites to properly function. It is recommended that managers review the appropriate State and Transition Models prior to wetland restoration.

Recreational uses

Hunting and Bird Watching: Over 113,000 acres of National Wildlife Refuges and over 77,000 acres of Waterfowl Production Areas owned and managed by the United States Fish and Wildlife Service are available for public hunting and bird watching. In addition, over 22,000 acres of North Dakota Wildlife Management Areas (WMAs), approximately 8,000 acres of North Dakota Forest Service, and thousands of acres of Department of Trust Lands are scattered throughout the central and western portions of the MLRA; these areas are available for hunting and bird watching. MLRA 55A provides a unique ruffed grouse hunting opportunity in North Dakota on wildlife management areas managed by the North Dakota Game and Fish Department and forest service lands managed by North Dakota Forest Service within the Turtle Mountain.

Camping: Three state parks are located within the MLRA including Lake Metigoshe State Park (Turtle Mt.), Grahams Island State Park (Devils Lake), and the newly designated Pembina Gorge State Park (formerly Pembina Gorge Recreation Area). These Parks provide hiking, biking, birding, canoeing, and wildlife viewing opportunities. Many local parks and private parks provide modern and primitive camping opportunities. The approximately 8,000 acres of North Dakota Forest Service provides primitive camping (no electric or water hookups) as well as fishing and canoeing access at various lakes. These forests and lakes provide access to swimming beaches, picnicking, and an extensive trail system open to hiking, mountain biking, horseback riding, snowmobiling, and cross-country skiing (not groomed). Limited primitive camping is also available on North Dakota Game and Fish Department Wildlife Management Areas.

Hiking/Biking/Horseback Riding: Hiking is permitted on most state and federally owned lands. Developed hiking and biking trails can be found on North Dakota Forest Service lands (18.6 miles), Upper Souris NWR (4.25 miles), Des Lacs NWR (8.5 miles), J. Clark NWR (3.3 miles), White Horse Hill National Game Preserve (3.6 miles), Lake Metigoshe State Park (16 miles), and Grahams Island State Park (2.1 miles; 3 miles cross country skiing). In addition, extensive biking and walking trails are found in local county and city parks. The Turtle Mountain State Recreation Area (ND Forest Service) is located six miles northwest of Bottineau. This recreation area has over 12 miles of trails open to hiking, biking, snowshoeing, horseback riding, and OHV’s.

The Pembina Gorge State Park encompasses over 2,800 acres of public land in the Pembina River Gorge. Steep valley cliffs towering over small, isolated prairies and pocketed wetlands surrounded by the largest continuous, undisturbed forest in North Dakota provide opportunities for canoeing, kayaking, hiking, biking, horseback riding, hunting, wildlife observing, birding, and downhill and cross- country skiing. Thirty miles of trails provide snowmobiling, mountain biking, and off-highway vehicles (OHV) opportunities.

Canoeing/Kayaking: Designated canoe and kayaking trails are available within the MLRA. J. Clark Sayler NWR has 12.75 miles of designated trails on the Souris River and Pembina Gorge State Park has 14.25 miles on the Pembina River. The Pembina Gorge State Park offers kayak rentals along with kayak transportation. Lake Metigoshe State Park offers canoe and kayak rentals along with standup paddleboards, pontoons, cross country skis, snowshoes, etc.

Downhill Skiing: Downhill skiing is available at Bottineau Winter Park within Turtle Mountain and Frost Fire Park at the Pembina Gorge. Full-service rental shops are available along with alpine trails ranging from beginner to expert. Conveyor lifts on the beginner hills to chairlifts are available for skiers.

International Peace Garden: The only peace garden located on the United States/Canada border, the International Peace Garden is a 2,339-acre botanical garden commemorating peace between the United States and Canada along the world’s longest unfortified border. It blooms with more than 155,000 flowers and showcases the Peace Chapel, Peace Towers, and Floral Clock. The North American Game Wardens Museum if also located within the boundaries of the International Peace Garden.

Wood products

No appreciable wood products are present on the site.

Other products

Seed harvest of native plant species can provide additional income on this site. In addition, cattails can provide a variety of other uses including edible pollen and roots, paper, and ethanol.

Other information

• Further investigation is needed on the wide range of landforms and soil textures (and associated properties) and their relationship to hydrology/plant dynamics.
• Further investigation is needed on areas of this site associated with drainageways and flood plains. Ludden and a minor component of Rauville soils occur on flood plains of streams and rivers. Very poorly drained phases of Marysland and a minor component of Lowe soils occur in some drainageways. A separate Ecological Site for these soils was considered during the PESD project. The impact of occasional or frequent flooding on these areas needs evaluation. MLRA map units needing investigation are:
o Ludden silty clay, very poorly drained, 0 to 1 percent slopes, frequently flooded (map unit 2q56l)
o Marysland loam, very poorly drained, 0 to 1 percent slopes (map unit 2q3wh)
• Further investigation is needed on soils with surface organic materials greater than 8 inches thick. These ‘histic’ soils occur as calcareous fens and are unique in an MLRA with predominantly mineral soils. The most extensive area of organic soils in the MLRA is known as the Denbeigh Bog (McHenry County). Numerous, smaller fens are scattered through the Turtle Mountain area. Some plant community studies have been done by universities in North Dakota, documenting rare wetland flora for this region. The uniqueness of the soil/hydrology/vegetation interactions may warrant a distinct ESD. MLRA map units needing investigation are:
o Eramosh mucky peat, 0 to 1 percent slopes (map unit 2q55c)
o Eramosh mucky peat, ponded, 0 to 1 percent slopes (map unit 2q55d)
o Rifle mucky peat, 0 to 1 percent slopes (map unit 2q55f)
• Further investigation is needed on the influence of water chemistry on the soil/water/plant dynamics of this site. Currently wetlands with fresh water and those with brackish water are both included in the Shallow Marsh site. During the drawdown phase, in particular, the chemistry of both water and soil will likely significantly impact the plant community. Soils with some accumulation of carbonates and/or salts are included in this site; however, these accumulations are more typical of discharge wetlands which are not considered the central concept of Shallow Marsh. Calciaquolls form where soil water movement is more upward than downward, creating the layer of carbonate accumulation near the surface. It is believed the duration of ponding on the Typic Calciaquolls included in this site is significantly longer now than when these soils were forming. Extensive cultivation of the surrounding uplands contributes to more runoff into these wetlands now than under prairie conditions. In addition, periodic cultivation of the wetland soils likely has altered soil structure significantly – slowing infiltration. A separate ecological site may be needed to adequately address the brackish water/discharge wetland areas included in this site.
• Further investigation is needed on soils with nearly continuous, deep ponding (Southam series). The hydrology and plant community on this site is likely not well-represented by the Shallow Marsh site. A Deep Marsh ecological site may need to be developed.
• Further evaluation and refinement of the State-and-Transition model may be needed to identify disturbance driven dynamics. Additional states and/or phases may be required to address grazing response.
• Further documentation may be needed for plant communities in all states. Plant data has been collected in previous range-site investigations, including clipping data; however, this data needs review. If geo-referenced sites meeting Tier 3 standards for either vegetative or soil data are not available, representative sites will be selected for further investigation.
• Site concepts will be refined as the above noted investigations are completed.
• The long-term goal is to complete an approved, correlated Ecological Site Description as defined by the National Ecological Site Handbook.
• NASIS revisions needed:
o One very poorly drained, ponded component of Venlo in 55A is currently linked to Non- site; this needs to be relinked to Shallow Marsh until a Deep Marsh ES is considered.
o Eight components of Parnell are currently linked to 53A Wet Land (Legacy); these need to be relinked to 55A Shallow Marsh.
o Eight components of Southam are currently linked to 53A Non-site; these need to be relinked to 55A Shallow Marsh.

This ESD is the best available knowledge. The site concept and species composition table have been used in the field and tested for more than five years. It is expected that as additional information becomes available revisions may be required.

Inventory data references

Information presented here has been derived from NRCS and other federal/state agency clipping and inventory data. Also, field knowledge of range-trained personnel was used. All descriptions were peer reviewed and/or field tested by various private, state and federal agency specialists.

Those involved in developing this site description include: Stan Boltz, NRCS Range Management Specialist; Dave Dewald, NRCS State Biologist; Jody Forman, NRCS Range Management Specialist; Jeff Printz, NRCS State Range Management Specialist; Kevin Sedivec, Extension Rangeland Management Specialist; Shawn Dekeyser, North Dakota State University; Rob Self, The Nature Conservancy and Lee Voigt, NRCS Range Management Specialist.

Other references

Bakker, K.K. 2003. The effect of woody vegetation on grassland nesting birds: an annotated bibliography. The Proceedings of the South Dakota Academy of Science 82:119-141.

Bansal, S. et. al. 2019. Typha (cattail) invasion in North America wetlands: biology, regional problems, impacts, ecosystem services, and management. Wetlands 39:645-684.

Barker, W.T. and W. C. Whitman. 1988. Vegetation of the Northern Great Plains. Rangelands 10(6): 266-272.

Bluemle, J.P. 1985. Geology of Bottineau County, North Dakota. North Dakota Geological Survey Bulletin 78-Part I. 57 pages.

Bluemle. J.P. 2016. North Dakota’s geologic legacy. North Dakota State University Press. 382 pages.

Bluemle, J.P. 2015. Turtle Mountain. North Dakota geology- the work of John Bluemle Ph.D. Available at http://johnbluemle.com/21-mountainous-areas-of-nd-turtle-mountain/

Boyd, L. 2001. Wildlife use of wetland buffer zones and their protection under the Massachusetts wetland protection act. University of Massachusetts Department of Natural Resources Conservation. 148 pages.https://ag.umass.edu/sites/ag.umass.edu/files/pdf-doc-ppt/final_project.pdf

Briske, D.D. (editor). 2017. Rangeland systems – processes, management, and challenges. Springer Series on Environmental Management. 661 pages.

Burgess, R.L. 1965. A study of plant succession in the sandhills of southeastern North Dakota. Proceedings ND Academy of Science 19:62-80

DeByle, N.V. and R.P. Winokur. 1985. Aspen: ecology and management in the western United States. USDA Forest Service General Technical Report RM-119. Rocky Mountain Forest and Range Experiment Station, Fort Collins, CO. 283 pages. Available at https://www.fs.fed.us/rm/pubs_rm/rm_gtr119.pdf

DeKeyser, E.S., G. Clambey, K. Krabbenhoft, and J. Ostendorf. 2009. Are changes in species composition on central North Dakota rangelands due to non-use management? Rangelands 31:16-19

DeKeyser, E.S., D.R. Kirby, and M.J. Ell. 2003. An index of plant community integrity: development of the methodology for assessing prairie wetland plant communities. Ecological Indicators 3:119-133. https://www.sciencedirect.com/science/article/pii/S1470160X03000153

Dix, R.L. and F.E. Smeins. 1967. The prairie, meadow, and marsh vegetation of Nelson County, North Dakota. Canadian Journal of Botany 45:21-57.

Dornbusch, M.J., R.F. Limb, and C.K. Gasch. 2018. Facilitation of an exotic grass through nitrogen enrichment by an exotic legume. Rangeland Ecology & Management 71:691-694.

Dyke, S.R., S.K. Johnson, and P.T. Isakson. 2015. North Dakota state wildlife action plan. North Dakota Game and Fish Department, Bismarck, ND. 468 pages.

Ehrenfeld, Joan G. 2002. Effects of exotic plant invasions on soil nutrient cycling processes. Ecosystems 6:503-523.

Eilers, R.G., L.A. Hopkins, and R.E. Smith. 1978. Soils of the Boissevain-Melita area. Manitoba Soil Survey Report No. 20, Manitoba Department of Agriculture. Available at http://sis.agr.gc.ca/cansis/publications/surveys/mb/mb20/mb20_report.pdf

Ereth, C., J. Hendrickson, D. Kirby, E. DeKeyser, K. Sedevic, and M. West. Controlling Kentucky bluegrass with herbicide and burning is influenced by invasion level. Invasive Plant Science and Management 10: 80-89.

Ewing, J. 1924. Plant succession on the brush prairie in northwestern Minnesota. Journal of Ecology 12:228-266.

Gilbert, M.C. et. al. 2006. A regional guidebook for applying the hydrogeomorphic approach to assessing wetland functions of prairie potholes. US Army corps of Engineers, Engineer Research and Development Center, Vickburg, MS. 170 pages. https://wetlands.el.erdc.dren.mil/pdfs/trel06-5.pdf#view=fit&pagemode=none

Gilgert, W. and S. Zack. 2010. Integrating multiple ecosystem services into ecological site descriptions. Rangelands: 32:49-54.

Grant, T.A. and R.K. Murphy. 2005. Changes on woodland cover on prairie refuges in North Dakota, USA. Natural Areas Journal 25:359-368.

Guinan, D.M, and C.S. Rewcastle. 1982. Trends of plant succession in Turtle Mountain Provincial Park. Manitoba Department Natural Resources MS Report No. 82-6. 40 pages.

Heitschmidt, R. K., K. D. Klement, and M. R. Haferkamp. 2005. Interactive effects of drought and grazing on northern great plains rangelands. Rangeland Ecology and Management 58:11-19.

Hendrickson, J.R., P. S. Johnson, M. A. Liebig, K. K. Sedivec, and G. A. Halvorson. 2016. Use of ecological sites in managing wildlife and livestock: an example with prairie dogs.

Hendrickson, J.R., S.L. Kronberg, and E.J. Scholljegerdes. 2020. Can targeted grazing reduce abundance of invasive perennial grass (Kentucky Bluegrass) on native mixed-grass prairie? Rangeland Ecology and Management, 73:547-551.

Higgins, K.F. 1984. Lightning fires in grasslands in North Dakota and in pine-savanna lands in nearby South Dakota and Montana. J. Range Manage. 37:100-103.

Higgins, K.F. 1986. Interpretation and compendium of historical fire accounts in the Northern Great Plains. United States Department of Interior, Fish and Wildlife Service. Resource Publication 161. 39 pages.

Higgins, K.F., A.D. Kruse, and J.L. Piehl. 1989. Effects of fire in the Northern Great Plains. U.S. Fish and Wildlife Service and Cooperative Extension Service South, Dakota State University. Extension Circular 761. 48 pages.

High Plains Regional Climate Center, University of Nebraska, 830728 Chase Hall, Lincoln, NE 68583- 0728. (http://hprcc.unl.edu)

Hoffman, G.R. and R.R. Alexander. 1987. Forest vegetation of the Black Hills National Forest of South Dakota and Wyoming: a habitat type classification. USDA Forest Service Research Paper RM- 276, 48 pages.

Israelsen, K. 2009. Herbicide, salinity, and flooding tolerance of foxtail barley (Hordeum jubatum L.) and desirable pasture grasses. M.S. thesis. Utah State University. 95 pages. https://digitalcommons.usu.edu/cgi/viewcontent.cgi?article=1515&context=etd

Johnson, Sandra. 2015. Reptiles and amphibians of North Dakota. North Dakota Game and Fish Department. 64 pages.

Jordan, N. R., D.L. Larson, and S.C. Huerd. 2008. Soil modification by invasive plants: effects on native and invasive species of mixed-grass prairies. Biological Invasions 10:177-190.

Knudson, W. and R. L. Post. 1963. Butterflies of Bottineau County. North Dakota State University Department of Agricultural Entomology. 29 pp.

Kurmis, V., and E. Sucoff. 1999. Population density and height distribution of Corylus cornuta in undisturbed forests of Minnesota: 1965-1984. Can. J. Bot. 67:2409-2413.

Lemke, Richard W., Geology of the Souris River area, North Dakota Geological Survey, professional paper, 325 pp. Prepared as a part of a program of the Department of the Interior for development of the Missouri River Basin United States Government Printing Office, Washington, DC:1960.

Lura, C.L., W.T. Barker, and P.E. Nyren.1988. Range plant communities of the Central Grasslands Research Station in south central North Dakota. Prairie Naturalist 20:177-192.

Mader, E., M. Shepherd, M. Vaughan, and S.H. Black. 2011. Attracting native pollinators: protecting North America's bees and butterflies. Accessed at https://xerces.org, May 1, 2017.

McCartney. D.H. 1993. History of grazing research in the aspen parkland. Canadian Journal of Botany 73:749-763.

Minnesota Department of Natural Resources, Managing your woodland for ruffed grouse, Accessed on February 25, 2019; Available at https://files.dnr.state.mn.us/recreation/hunting/grouse/managing_woodland_ruffed_grouse_flat.pdf

Minnesota Department of Natural Resources. 2005. Field guide to the native plant communities of Minnesota – the prairie parkland and tallgrass aspen parklands provinces. Minnesota DNR.

Minnesota Department of Natural Resources. ecological system summaries and class factsheets – wetland grasslands, shrublands, and marshes. https://www.dnr.state.mn.us/npc/wetlandgrassland.html

North Dakota Division of Tourism, Accessed on February 25, 2019. Available at https://www.ndtourism.com/sports-recreation

North Dakota Parks and Recreation Department, Accessed on February 25, 2019. Available at http://www.parkrec.nd.gov/recreationareas/recreationareas.html

Palit, R., G. and E.S. DeKeyser. 2022. Impacts and drivers of smooth brome (Bromus inermis Leyes.) invasion in native ecosystems. Plants: 10,3390. http://https://www.mdpi.com/2223-7747/11/10/1340

Palit, R., G. Gramig, and E.S. DeKeyser. 2021. Kentucky bluegrass invasion in the Northern Great Plains and prospective management approaches to mitigate its spread. Plants: 10,817. https://doi.org/10.3390/plants10040817

Potter, L.D. and D. R. Moir. 1961. Phytosociological study of burned deciduous woods, Turtle Mountains North Dakota. Ecology Vol 2, No. 3: 468-480.

Printz, J.L. and J.R. Hendrickson. 2015. Impacts of Kentucky bluegrass Invasion (Poa pratensis) on ecological processes in the Northern Great Plains. Rangelands 37(6):226-232.

Redmann, Robert E. 1975. Production ecology of grassland plant communities in western North Dakota. Ecological Monographs 45:83-106.

Reeves, J.L., J.D. Derner, M.A. Sanderson, J.R. Hendrickson, S.L. Kronberg, M.K. Petersen, and L.T. Vermeire. 2014. Seasonal weather influences on yearling beef steer production in C3-dominated Northern Great Plains rangeland. Agriculture, Ecosystems and Environment 183:110-117.

Renton, J. C. 2010. The impact of cattle grazing on aspen regeneration on crown lands in western Manitoba. M.S. thesis, University of Manitoba, Winnipeg. 130 pages.

Riffle, J.W. and G.W. Peterson. 1986. Diseases of trees in the Great Plains. U.S.D.A. Forest Service General Technical Report RM-129. 149 pages.

Royer, R. A., 2003. Butterflies of North Dakota: An Atlas and Guide. Minot State University, Minot, ND.

Schulz, J.W. 1984. Manipulation of habitat for ruffed grouse on the Wakopa Wildlife Management Area, North Dakota. Pages 109-121. In Robinson, W.L. editor. Ruffed Grouse Management, state of the art in the early 1980’s. Proceedings of a Symposium, 45th Midwest Fish and Wildlife Conference, St. Louis, MO. 181 pages. Available at http://wildlife.org/wp-content/uploads/2015/12/Robinson1984_RuffedGrouseManagement_300dpi.pdf

Seabloom, R. 2020. Mammals of North Dakota. North Dakota Institute for Regional Studies, Fargo, ND. 470 pages.

Sedivec, K.D., J.L. Printz. 2014. Ranchers guide to grassland management IV. NDSU Extension Service publication R1707.

Seelig, B. and S. DeKeyser. 2006. Wetland function in the northern prairie pothole region. North Dakota State University Extension Service. WQ-1313. 28 pages.
https://erams.com/static/wqtool/PDFs/Wave%20Papers/wq1313.pdf

Severson, K. E. and C. Hull Sieg. 2006. The nature of eastern North Dakota: Pre-1880 historical ecology. North Dakota Institute for Regional Studies.

Smith, C., E.S. DeKeyser, C. Dixon, R. Kobiela, and A. Little. Effects of sediment removal on prairie pothole wetland plant communities in North Dakota. Natural Area Journal 36:48-58. https://bioone.org/journals/natural-areas-journal/volume-36/issue-1/043.036.0110/Effects-of-%20Sediment-Removal-on-Prairie-Pothole-Wetland-Plant-Communities/10.3375/043.036.0110.full

South Dakota Dept. of Game, Fish and Parks. 2014. South Dakota wildlife action plan. Wildlife Division Report 2014-03.

Spaeth, K.E., Hayek, M.A., Toledo, D., and Hendrickson, J. 2019. Cool season grass impacts on native mixedgrass prairie species in the Norther Great Plains. America’s Grassland Conference: Working Across Boundaries. The Fifth Biennial Conference on the Conservation of America’s Grasslands. Bismarck, ND. 20-22 August.

Stewart. R.E. and H.A. Kantrud. 1971. Classification of natural ponds and lakes in the glaciated prairie Region. Resource Publication 92. Bureau of Sport Fisheries and Wildlife, Fish and Wildlife Service, Washington, DC. 57 pages. https://pubs.usgs.gov/rp/092/report.pdf

Thorpe, J.P. 1978. Effects of cattle grazing on understory shrubs in Saskatchewan aspen forests. M.S. thesis, University of Saskatchewan, Saskatoon. 135 pages.

Tidwell, D., D.T. Fogarty, and J.R. Weir. 2021. Woody encroachment in grasslands, a guide for understanding risk and vulnerability. Oklahoma State University, Oklahoma Cooperative Extension Service publication E-1054. 32 pages.

Toledo, D., M. Sanderson, K. Spaeth, J. Hendrickson, and J. Printz. 2014. Extent of Kentucky bluegrass and its effect on native plant species diversity and ecosystem services in the northern great plains of the United State. Invasive Plant Science and Management 7(4): 543-552.

USDA, NRCS. 2021. National range and pasture handbook,
(https://www.nrcs.usda.gov/wps/portal/nrcs/detailfull/national/landuse/rangepasture/?cid=stelprdb104 3084)

USDA, NRCS. 2006. Land resource regions and major land resource areas of the United States, the Caribbean, and the Pacific Basin. U.S. Department of Agriculture Handbook 296.

USDA, NRCS. National Soil Information System, 100 Centennial Mall North, Room 152, Lincoln, NE 68508-3866.
(https://www.nrcs.usda.gov/wps/portal/nrcs/detail/soils/survey/tools/?cid=nrcs142p2_053552)

USDA, NRCS. National Water & Climate Center, 1201 NE Lloyd Blvd, Suite 802, Portland, OR 97232-1274. (https://www.wcc.nrcs.usda.gov/)

USDA, NRCS. 2001. The PLANTS database, Version 3.1 (http://plants.usda.gov). National Plant Data Center, Baton Rouge, LA 70874-4490 USA.

USDA, NRCS, Various Published Soil Surveys.

USDI BLM.1999. Utilization studies and residual measurements. Interagency Technical Reference 1734-3.

U.S. Fish and Wildlife Service. 2015. Endangered and threatened wildlife and plants; designation of critical habitat for the Dakota skipper and Poweshiek skipperling; Vol. 79 No. Final Rule October 1, 2015, 50 CFR Part 17.

Vinton, M.A. and E.M. Goergen. 2006. Plant-soil feedbacks contribute to the persistence of Bromus inermis in tallgrass prairie. Ecosystems 9: 967-976.

Waddington, J., D.H. McCartney, and L.P. Lefkovitch. 1999. Effects of management on species dynamics of Canadian aspen parkland pastures. Journal of Range Management 52:60-67.

Weatherill, R.G., and L.B. Keith. 1969. The effect of livestock grazing on an aspen forest community. Utah State University. Department of Lands and Forests Fish and Wildlife Division Technical Bulletin No. 1. 31 pages.

Whitman, W.H., H. Hanson, and R. Peterson. 1943. Relation of drought and grazing to North Dakota range lands. North Dakota Agricultural Experimentation Bulletin 340.

Contributors

ND NRCS: David Dewald, Jonathan Fettig, Alan Gulsvig, Mark Hayek, Chuck Lura, Jeff Printz, Steve Sieler, and Hal Weiser

Approval

Suzanne Mayne-Kinney, 5/08/2025

Acknowledgments

We gratefully acknowledge Dr. Shawn DeKeyser, NDSU, for his helpful comments and suggestions.
